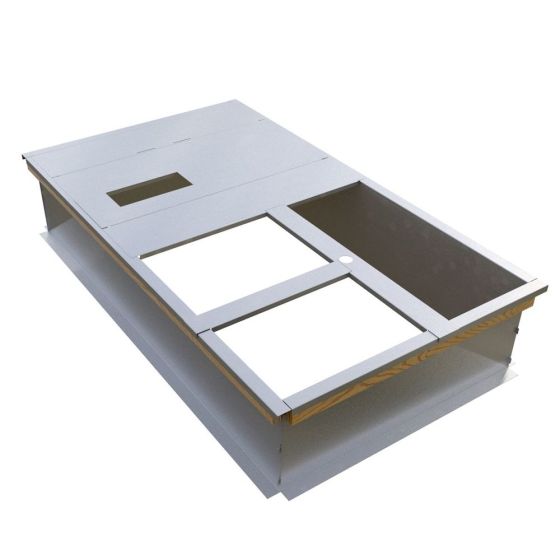

Micrometl Roof Curb, 14" Tall, Knockdown, No Pitch, Insulated Deck Pan
Item
0537-014A-00010
FEATURES
Knockdown Curb - 14 inches tall non insulated full perimeter, using micro-lock galvanized metal construction. Knockdown roof curb without pitch, insulated deck pans included, includes wood nailer, and gasket package.
SPECIFICATIONS
• Height: 14 Inches Tall• Weight: 93lbs/42.18kg
• Insulated: Non Insulated
• Perimeter: Full Perimeter
• Perimeter Gauge: 18
• Composition: Galvanized Metal
• Support Gauge: 20
• Deck pan: Included
• Deck pan Gauge: 20
• Gasket Description: 0.25 X 1.5 Inch Multipurpose Medium Density Foam Gasket.
| Specification | |
|---|---|
| Adjustable Pitch | No | Curb Height | 14" | Structurally Calculated | No | Structure | Knockdown |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 93 | Exterior Dimensions (D) (inches) | 70.870000 | Exterior Dimensions (W) (inches) | 40.680000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 100.000000 |
