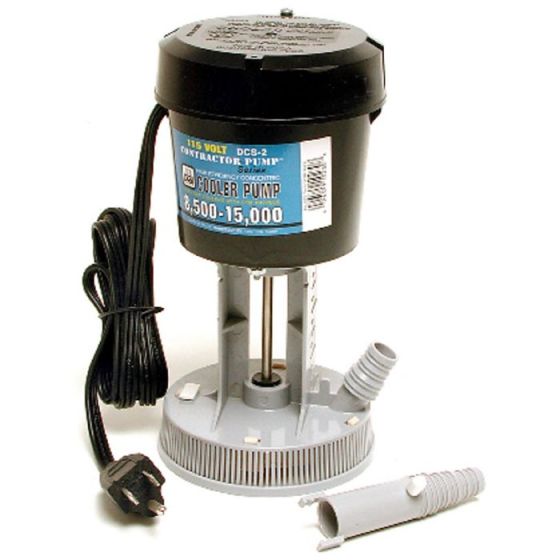

Dial® DCS-2 Concentric Cooler Pump 115Vac, 15,000 CFM, 500 GPH

Item
1023
  • California Prop 65

FEATURES & BENEFITS

• Horsepower: 1/40
• Voltage: 115Vac
• Amperage: 1.2
• Connection Size: 5/8 in. & 3/4in.
• Up to 15,000 CFM
• Up to 500 Gallons per Hour
• Flame Retardant Motor Housing
• Auto Reset Thermal Overload
• 6 ft. Power Cord
• 3 Prong Grounded Power Cord
• Shock Resistant Motor Housing
• Long Life Technology Bearing and Shaft
• Low Level / Low Recovery
• 1/2" To 4" Water Reservoir Depths
• Elbow Extension w / Elevated Bleed Port
• Built-in Barbed Elbow
• Screened Water Inlet
• Fits All Coolers
• UL Recognized Component and UL Classified Retrofit Pump

Electrical
Voltage 115
Safety Standards
California Prop 65 Yes
Specification
Gallons Per Hour 500 @ 1 ft. Head Height
Maximum CFM 15,000
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 5.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 5.000000
