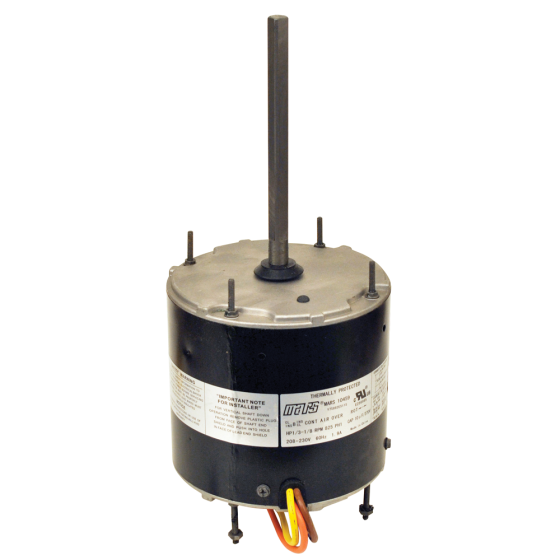

Mars® Condenser Fan Motor 1/8-1/3 HP, 825 RPM, 230Vac, 1.9A, 10µF/370Vac, 1 Speed, 60°C (PSC)
Item
10459
APPLICATIONS
MARS multi-horsepower condenser fan motors are ideal for truck stock.
FEATURES & BENEFITS
• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 230
• Multi-Rated H.P.: 1/8-1/3
• Speeds: 1
• Hz: 60
• Rotation: REV
• RPM Range: 825
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 1.9
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 6.5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 10/370
• Rheem mounting holes w/screws installed
• Thru bolt or band mounting
• Water slinger on shaft
• Air conditioning or heat pump duty
| Specification | |
|---|---|
| Motor HP | 1/8-1/3 | Motor Type | PSC | Number of Speeds | 1 | RPM | 825 |
| Electrical | |
|---|---|
| Amps | 1.9 | FLA | 1.9 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15 | Exterior Dimensions (D) (inches) | 14.000000 | Exterior Dimensions (W) (inches) | 7.000000 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 15.000000 |
