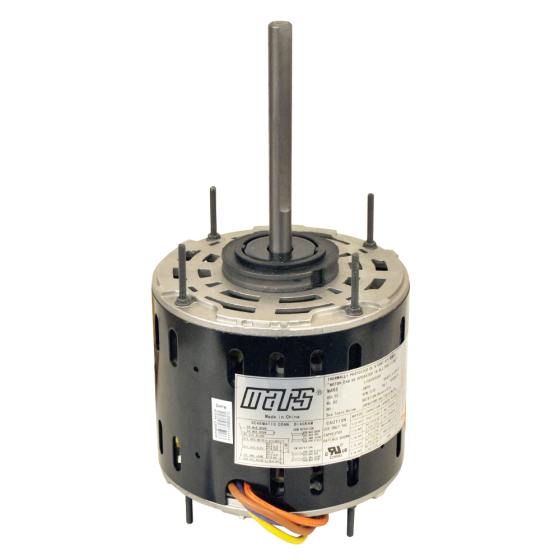

Mars® Multi- HP Direct Drive Blower Motor 1/5-3/4 HP, 1075 RPM, 115Vac, 8.5A, 10/20µF/370Vac, 4 Speed, 40°C (PSC)

Item

10466

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/5-3/4
• RPM: 1075
• Number of Speeds: 4
• Rotation: Reversible
• Voltage: 115Vac
• Amperage: 8.5
• Capacitor: 10/20µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 5.8

DIRECT REPLACEMENT FOR

• Century/A.O. Smith - FDL6002
• US Motors/Emerson - 5470
• Fasco - D2832
• Genteq/Regal - 3466
• Marathon - X074
• Nordyne/ Partners Choice - 01-0701
• ROTOM - R43602
• Carrier/Totaline RCD - P257-E5470
• Wagner - WG840466
• York/Source 3 - S1-FHM3466

Specifications

Specification
Ambient Temperature	40 °C
Bearing Type	Ball
Motor Frame	48
Motor HP	1/5 - 3/4
Motor Type	PSC
Mounting Type	Belly Band
Number of Speeds	4
RPM	1075
Shaft Diameter	0.50
Shaft Length	5.8

Electrical
Amps	8.5
FLA	8.5
Hertz	60
Voltage	115

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	11.800000
Exterior Dimensions (W) (inches)	5.800000
Exterior Dimensions (H) (inches)	5.800000
Shipping Weight (lbs)	10.000000

Warranty
Parts Warranty	1 Year
