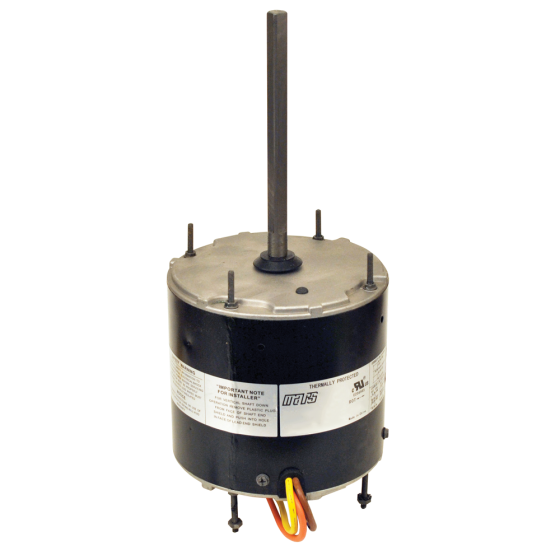

Mars® Condenser Fan Motor 1/5-1/2 HP, 1075 RPM, 208/230Vac, 3.6A, 10/12.5µF/370Vac, 2 Speed, 40°C (PSC)

APPLICATIONS

MARS multi-horsepower condenser fan motors are ideal for truck stock.

FEATURES & BENEFITS

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/2
• Voltage: 208-230
• Multi-Rated H.P.: 1/5-1/2
• Speeds: 2
• Hz: 60
• Rotation: REV
• RPM Range: 1075
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 3.6
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 40
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 10/12.5/370
• Rheem mounting holes w/screws installed
• Thru bolt or band mounting
• Water slinger on shaft
• Air conditioning or heat pump duty

DIRECT REPLACEMENTS

• Century/A.O. Smith - FD6000
• US Motors/Emerson - 5461
• GE/Genteq - 3464
• Marathon - X073
• Nordyne/ Partners Choice - 01-0699
• ROTOM - R43601
• Carrier/Totaline RCD - P257-E5461
• Diversitech/Wagner - WG840464
• York/Source 1 - S1-FHM3464
• York/Source 2 - S1-FHM3465
• ROTOM - R22605
