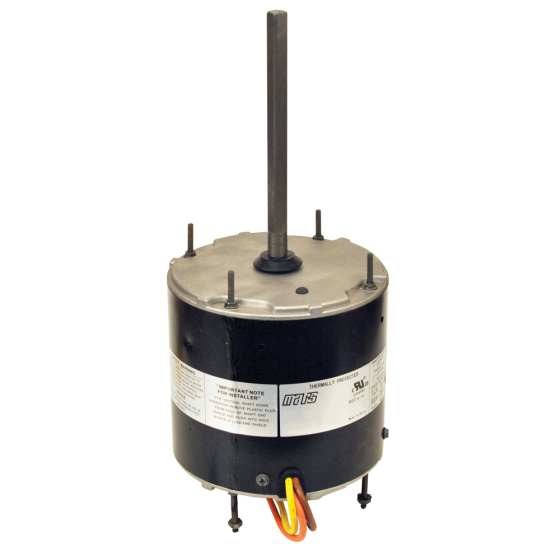

Mars® Condenser Fan Motor 1/6-1/3 HP, 825 RPM, 208/230Vac, 1.9A, 7.5/10µF/370Vac, 2 Speed, 60°C (PSC)

APPLICATIONS

MARS multi-horsepower condenser fan motors are ideal for truck stock.

FEATURES & BENEFITS

• Motor Type: PSC
• Enclosure: TEAO
• H.P. (Max.): 1/3
• Voltage: 208-230
• Multi-Rated H.P.: 1/6-1/3
• Speeds: 2
• Hz: 60
• Rotation: REV
• RPM Range: 825
• NEMA Frame Size: 48
• Phase: Single
• Standards: CUL
• FLA: 1.9
• Mount: All Angle
• Bearing: Ball
• Shaft Length Inches: 5
• Shaft Dia Inches: 1/2
• Thermal Protection: Auto
• Ambient Deg C: 60
• Ins. Class: Class B
• Capacitor Included: No
• Capacitor Rating: 10/7.5/370
• Rheem mounting holes w/screws installed
• Thru bolt or band mounting
• Water slinger on shaft
• Air conditioning or heat pump duty

DIRECT REPLACEMENTS

• Century/A.O. Smith - FE6001
• US Motors/Emerson - 5464
• Fasco - D2826
• Genteq/Regal - 3469
• Nordyne/ Partners Choice - 01-0696
• Rheem/Protech - 51-20760-11
• ROTOM - R22601
• Carrier/Totaline RCD - P257-E5464
• Wagner - WG840469
• York/Source 2 - S1-FHM3469
