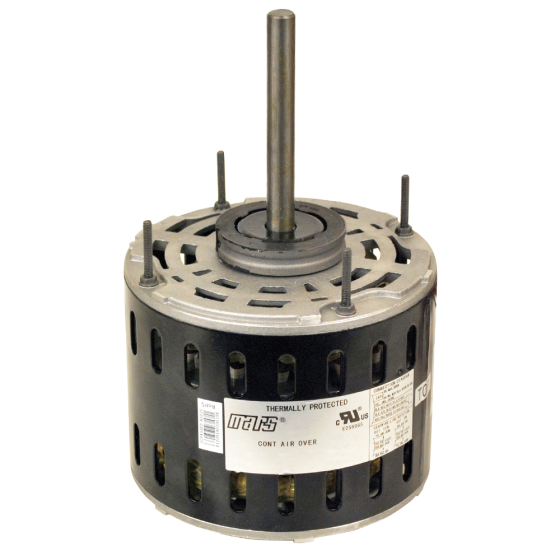

Mars® Direct Drive Blower Motor 1/4 HP, 1075 RPM, 115Vac, 4.2A, 5µF/370Vac, 3 Speed, 40°C (PSC)

Item

10583

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 115Vac
• Amperage: 4.2
• Capacitor: 5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.5

DIRECT REPLACEMENT FOR

• Century/A.O. Smith - DL1026
• US Motors/Emerson - 1863
• Fasco - D721
• Genteq/Regal - 3583
• Marathon - X000
• Nordyne/ Partners Choice - 10169
• Packard - 43583
• Rheem/Ruud Protech - W5114BAA301
• Carrier/Totaline RCD - P2578583
• Diversitech/Wagner - WG840583
• York/Source 2 - S1FHM3583
• ROTOM - DD3583

Specifications

Specification
Ambient Temperature	40 °C
Bearing Type	Sleeve
Motor Frame	48
Motor HP	1/4
Motor Type	PSC
Mounting Type	Belly Band
Number of Speeds	3
RPM	1075
Shaft Diameter	0.50
Shaft Length	4.5

Electrical
Amps	4.2
FLA	4.2
Hertz	60
Voltage	115

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	13.600000
Exterior Dimensions (W) (inches)	5.800000
Exterior Dimensions (H) (inches)	6.100000
Shipping Weight (lbs)	10.000000

Warranty
Parts Warranty	1 Year
