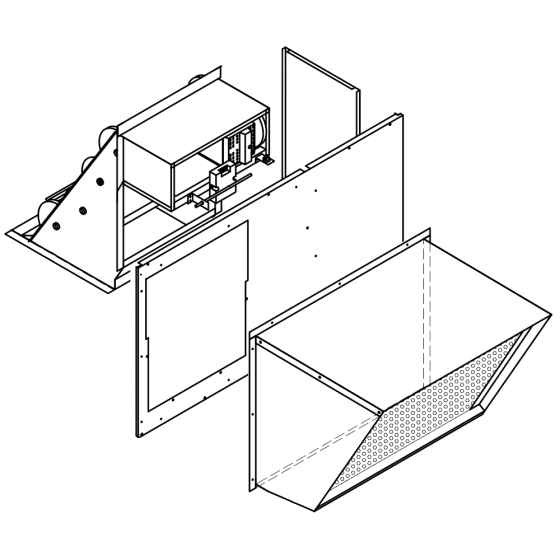

CanFab Economizer, Dry Bulb with Jade, Barometric Relief
Item
1161-EC-HDE
FEATURES
• Gear driven Honeywell Jade FDD modulating dry bulb control system• California energy commission title 24 listed #HWJXX low leak dampers 3-5% exceeding title 24 10% @ 1” W.G.
• Color coordinated paint finish on outside air hood, replacement panel and access door standard
• Water entrainment style outside air filter
• Filter rack and 1” start up filters included
• Barometric relief
• 100% shutdown upon loss of power
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 84 | Exterior Dimensions (D) (inches) | 38.000000 | Exterior Dimensions (W) (inches) | 38.000000 | Exterior Dimensions (H) (inches) | 33.000000 | Shipping Weight (lbs) | 90.000000 |
