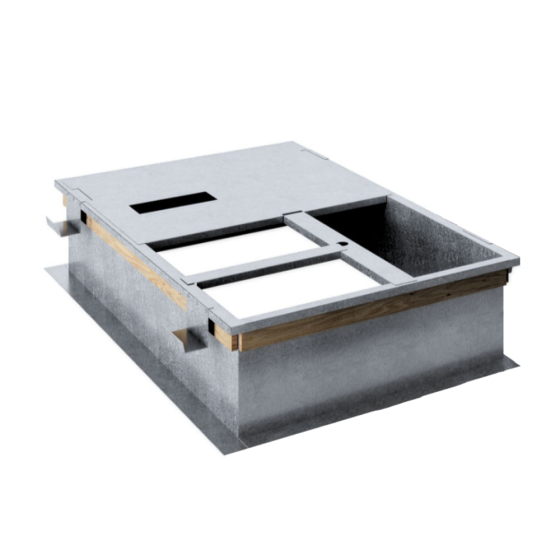

14" Roof Curb, Welded, No Pitch, Structurally Calculated

Item

CRBW-SRT12HA-1411

SPECIFICATIONS

• Weight: 105lbs/47.63kg

• Assembled Length O.D.: 70.87

• Assembled Width O.D.: 40.68

• Composition: Galvanized Sheet Metal

• Insulated: Non-Insulated

• Perimeter: Full Perimeter

• Support Gauge: 16

• Hold Down Gauge: 14

• Deckpan: Included

• Deckpan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	105
Exterior Dimensions (D) (inches)	76.000000
Exterior Dimensions (W) (inches)	45.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	105.000000
