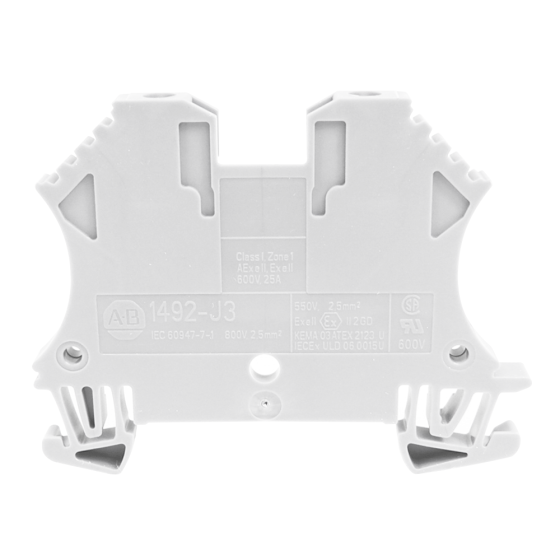

Feed Through Terminal Block, 2.5mm (White)

SPECIFICATIONS

• Certifications: RU, CA, IEC, ATEX

Voltage Rating
• RU & CSA - 600 V AC/DC
• IEC – 800 V AC/DC
• ATEX - 550V AC/DC

Maximum Current
• RU – 25A
• CSA – 20A
• IEC – 24A
• ATEX – 21A

Wire Range (Rated Cross Section)
• RU - #28-12 AWG
• CSA - #26-12 AWG
• IEC – 2.5mm²
• ATEX – 2.5mm² (#20-14 AWG)

• Wire Strip Length: 0.39 in. (10 mm)
• Recommended Tightening Torque: 4.5 to 7.1 lb in (0.5 to 0.8 N m)
• Density: 59 pcs/ft (196 pcs/m)
• Housing Temperature Range: -58 to +248 °F (-50 to +120 °C)
