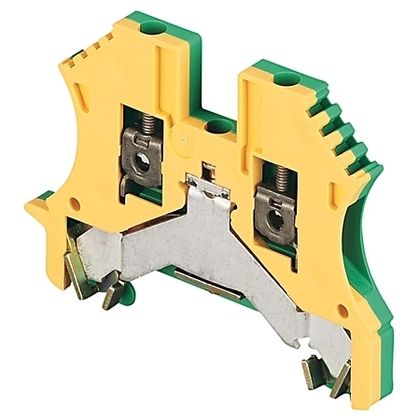

Feed Through Grounding Terminal Block, 2.5 mm (Green/Yellow)
Item
1492-JG3
SPECIFICATIONS
• Certifications: RU, CA, IEC, ATEX• Maximum Current: Grounding
Wire Range (Rated Cross Section)
• RU & CSA - #22-12 AWG
• IEC – 2.5mm²
• ATEX – 2.5mm² (#20-14 AWG)
• Wire Strip Length: 0.39 in. (10 mm)
• Recommended Tightening Torque: 7.1 lb in (0.8 N m)
• Mounting Torque — Center Screw: 3.5 to 6.2 lb in (0.4 to 0.6 N m)
• Density: 59 pcs/ft (196 pcs/m)
• Housing Temperature Range: -58 to +248 °F (-50 to +120 °C)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 3.149600 | Exterior Dimensions (W) (inches) | 0.314960 | Exterior Dimensions (H) (inches) | 7.000000 | Shipping Weight (lbs) | 2.000000 |
