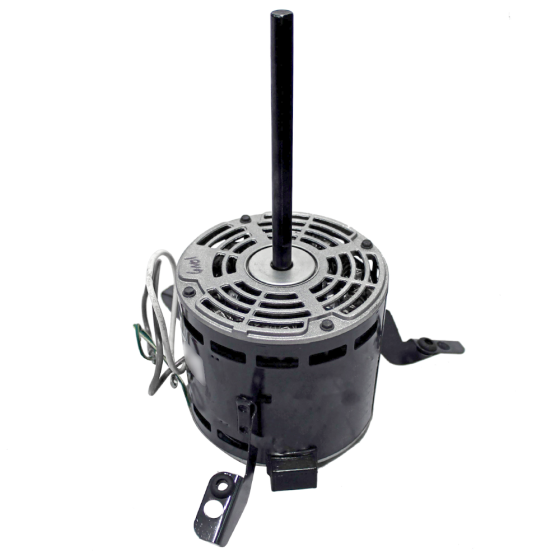

Direct Drive Blower Motor 3/4HP, 1050RPM, 208/230Vac, 3.0A, 10µF/370Vac, 3 Speed, (PSC)
Item
14B0006N01
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 3/4
• RPM: 1050
• Number of Speeds: 3
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 208/230Vac
• Amperage: 3.0
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Insulation Class: B
| Specification | |
|---|---|
| Motor HP | 3/4 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1050 |
| Electrical | |
|---|---|
| Amps | 3 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 15.15 | Exterior Dimensions (D) (inches) | 8.500000 | Exterior Dimensions (W) (inches) | 8.500000 | Exterior Dimensions (H) (inches) | 11.250000 | Shipping Weight (lbs) | 17.000000 |
| Warranty | |
|---|---|
| Country of Origin | China | Parts Warranty | 1 Year |
