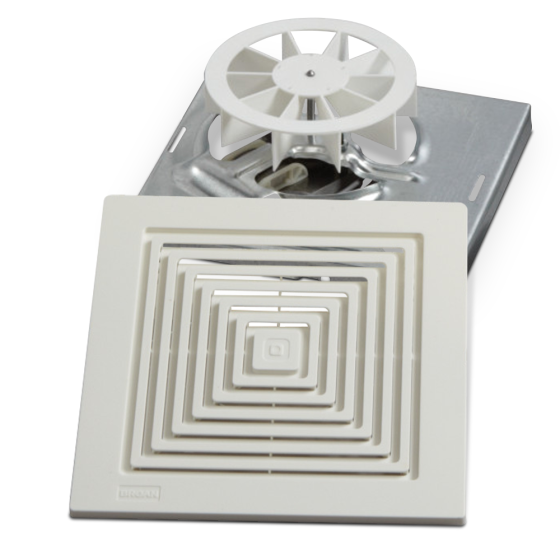

Broan® Motor/Blade/Grille Assembly 50CFM, 4.0 Sones, 120Vac (Wall Mountable)

Item
1688F
  • California Prop 65

APPLICATIONS

This Broan® 50CFM Ventilation Fan Motor/Blade/Grille Assembly is used with 1667H and 6884H Broan® Ventilation Fan Housings. Project packs are ideal for Contractors and Builders who have yet to pick out the final product. With the housing for the fan sold separately from the grille and motor, contractors are able to continue with construction and not have to worry about damaging, losing or storing the product. Once all construction is complete, the purchase of a finish pack can be made to add the finishing touches to the room.

FEATURES & BENEFITS

• CFM: 50
• ENERGY STAR® certified: No
• Sound Level (Sones): 4
• UL Listed: Yes
• Humidity Sensing: No
• Motion Sensing: No
• Motor Engineered For Continuous Operation: No
• Night Light: No
• Room Side Installation: No
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Recommended Room Size (Sq Ft) : 45
• Rated Amps: 0.9
• Voltage: 120
• Can Be Used To Comply With Title 24: No
• Manufacturer Warranty: 1 Year
• High Efficiency Luminaire: No

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1.5
Exterior Dimensions (D) (inches) 1.950000
Exterior Dimensions (W) (inches) 0.780000
Exterior Dimensions (H) (inches) 0.830000
Shipping Weight (lbs) 1.800000
Specification
CFM 50
