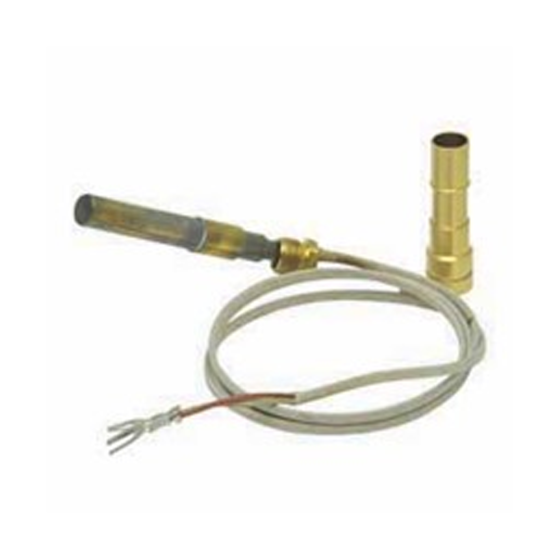

RobertShaw® Thermopile 36" Leads
PRODUCT DETAILS
The Robertshaw® 1950 Series Thermopile leads the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.
Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors. The 1950 Series Thermopiles, also known as TP-75, are two-wire spade connectors. The 1950 Series Thermopile (pilot generator) is designed for use on self-powered gas control systems. They can be used to replace similar competitive devices. It includes PG9 Pilot Adaptor.
FEATURES & BENEFITS
• Easy burner installation with attached threaded nut.• Stainless steel outer jacket for long life and resistance to heat blistering.
• Combination of copper and nickel alloys for good electrical conductivity.
• Mica washer to insulate from shorting conditions.
• Tinnerman clip included.
• Various lengths available for multiple applications.
• Electrical Rating: 250mV - 750mV.
• Connection: Two-wire spade connectors.
• Leads: 36"
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 0.0875 | Exterior Dimensions (D) (inches) | 2.750000 | Exterior Dimensions (W) (inches) | 0.250000 | Exterior Dimensions (H) (inches) | 0.250000 | Shipping Weight (lbs) | 0.100000 |
