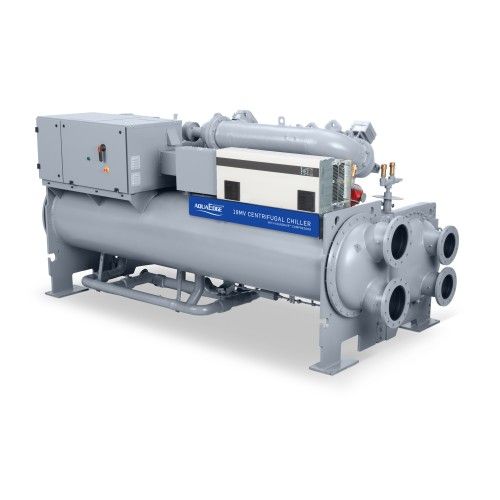

19MV AquaEdge® Water-Cooled Centrifugal Chiller
OVERVIEW
300 to 700 Tons
The AquaEdge 19MV Water-Cooled Centrifugal Chiller – Experience Unconditional Performance.
It’s time to rethink what you know about chillers. In the past, more operating range often meant less efficiency at design conditions. Now Carrier has created a chiller that delivers both, unconditionally. The all-new AquaEdge 19MV chiller can provide MORe: More Operating Range and high efficiency at design conditions.
Quickly evaluate chiller system performance
Carrier’s PLV Pro is a software tool that empowers consulting engineers to make objective and informed decisions about their chiller plant design that go beyond Full Load and IPLV metrics. Results are provided in a professional report or .csv format for further analysis. The tool is for professionals who need a quick and free-of-charge alternative to detailed energy modeling analyses.
Water-cooled chillers within the scope of the AHRI WCCL certification program are certified in accordance with the AHRI Water-Cooled Water-Chilling and Heat Pump Water-Heating Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.
FEATURES
Performance Features
- Low energy consumption during part load and full load operation
- Full load down to 0.52
- IPLV down to 0.31
- Quiet operation – less than 80 dBA
- Low GWP R-513A, R-515B or R-134a refrigerant (all with A1 safety rating)
- EquiDrive™ two-stage back-to-back compressor
- Dual inlet guide vanes for efficiency and stability
- Magnetic bearings
- Operating range of 40°F to 95°F entering condenser water down to 10% load
- Expansion control system with dual Electronic Expansion Valves (EXVs)
- Carrier® SmartVu™ color touchscreen control panel with multilingual display
- Compatible with Carrier Comfort Network® (CCN) communication link
Reliability Features
- ASME constructed heat exchangers
- Two-stage 300-700 tons (1055 to 2461 kW) compressor
- Semi-hermetically sealed compressor and permanent magnet motor
- Automated controls may be tested before start-up
- Air-cooled, dust and splash protected variable frequency drive
- Uninterruptable Power Supply (UPS)
Maintenance Features
- Password protected extensive service menu with built-in diagnostic capabilities, troubleshooting, and corrective action recommendations for preset alarms
- Alarm and alert files maintain the last 25 time and date stamped messages in memory
- Configuration data backup with non-volatile memory
- Thermistor-type temperature sensor with quick connects in each water nozzle
- Dual relief tree
- BluEdge® Service Platform
- Service contract available
Installation Features
- Compact footprint – many models fit through 72” x 80” double door fully assembled
- Bolt together construction
- Low voltage control circuits
- Automated controls test on start-up
Standard Warranty
- One year from start-up or 18 months from shipment
- Refrigerant warranty 5 years from date of manufacture (US & Canada only)
- Extended warranties available (US & Canada only)
California residents please see Proposition 65
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
