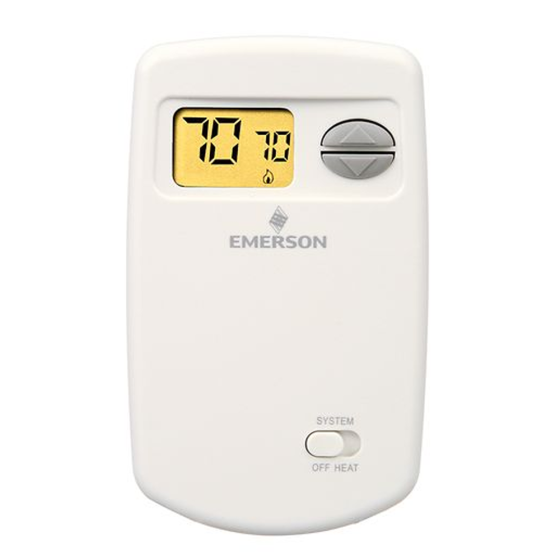

Emerson 70 Series™ Non-Programmable Thermostat 1H, 3Vdc (2 AAA - Conventional)

APPLICATIONS

The perfect upgrade from mechanical thermostat available as a Single Stage offering economy and value with proven reliability.

FEATURES

• Vertical model
• Non-programmable model
• Selectable Celsius or Fahrenheit temperature display
• Fossil fuel or electric heat compatible
• Electronic accuracy
• Temperature accuracy for customers on a budget

SPECIFICATIONS

• Program Options: Non-Programmable
• Program Periods Per Day Options: None
• Stages: Single Stage - 1H/0C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric, Does not control fan on a call for heat
• Terminals: RH, W
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: No
• Energy Mgt. Recovery/Early Start: No
• Keypad Lockout: No
• Set-Point Temperature Limits: No
• Display Type: 1.2 square in.
• Backlight: Key Press
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range45 to 99°F (7 to 37°C)
