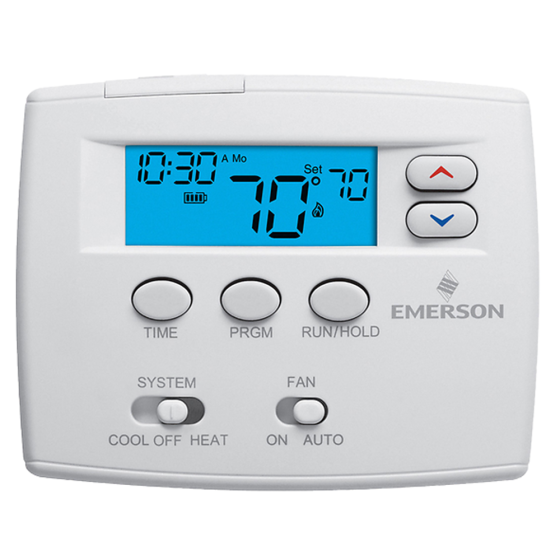

Emerson Blue™ Series 5+1+1/1 Hour Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA)

FEATURES

• Programmable, 24 hour
• Programmable, 5/1/1 day, 24 hour, 0-day or non-programmable
• Lighted display for easier low light viewing
• Air filter change indicator option
• Cool Savings™ saves energy during peak A/C demand periods

SPECIFICATIONS

• Program Options: Programmable - 24 Hours
• Program Periods Per Day Options: 4
• Stages Heat/Cool: Single Stage - 1H/1C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: R, C, W, Y, O/B, G
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery, Hardwire
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: No
• Set-Point Temperature Limits: No
• Display Type: 2 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99°F (7 to 37°C)
