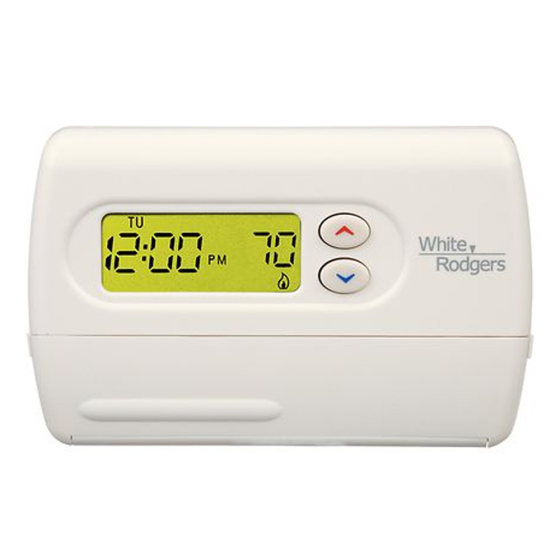

Emerson 80 Series™ 5+1+1 Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA)

FEATURES

• Choice of battery powered, dual power or hardwired model
• Fossil fuel or electric heat compatible
• Permanent program retention during power loss
• Configuration menu allows keypad selection of options
• Selectable energy management recovery

SPECIFICATIONS

• Program Options: Programmable - 5+1+1 Day
• Program Periods Per Day Options: 4
• Stages Heat/Cool: Single Stage - 1H/1C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: RC, RH, C, W, Y, O, B, G
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: Yes
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Battery, Hardwire
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: No
• Set-Point Temperature Limits: No
• Display Type: 2.2 square in.
• Backlight: Key Press
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99°F (7 to 37°C)
