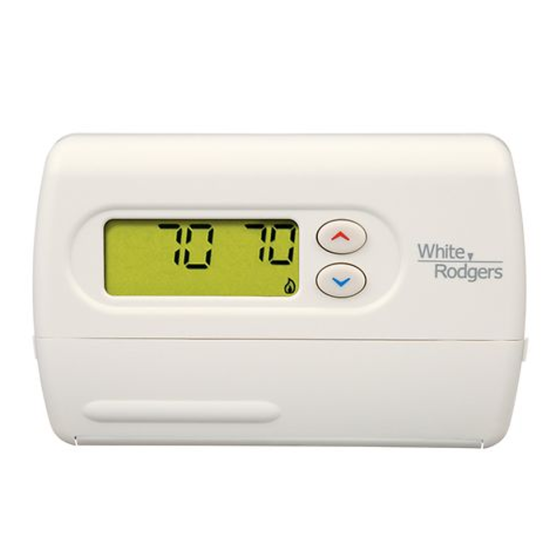

Emerson 80 Series™ 5+1+1 Programmable Thermostat 2H/1C, 24Vac (Heat Pump)
Item
1F82-261
FEATURES
• Hardwired model
• Heat Pump model
• Permanent program retention during power loss
• Configuration menu allows keypad selection of options
• Selectable energy management recovery
SPECIFICATIONS
• Program Options: Programmable - 5+1+1 Day• Program Periods Per Day Options: 4
• Stages Heat/Cool: Heat Pump - 2H/1C
• Style: Horizontal
• Typical Applications: Gas/Oil/Electric
• Terminals: R, C, W2, E, Y, O/B, G, L
• 3-Wire Zone Valve Connections: No
• Millivolt Compatible: No
• Economizer Connections: No
• Humidity Control: No
• Heat Pump Dual Fuel Control: No
• Heat Pump Auxiliary Lockout Control - Outdoor Sensor Option: None
• Remote Sensor Options: None
• Power Source: Hardwire
• Auto Changeover (Heat/Cool): No
• Fan Option: Auto, On
• Filter Change Reminder: Yes
• Energy Mgt. Recovery/Early Start: Yes
• Keypad Lockout: No
• Set-Point Temperature Limits: No
• Display Type: 1.8 square in.
• Backlight: Key Press or Continuous with Common Wire
• Voltage: 20 to 30 Vac 50/60 Hz
• Amp Rating: 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
• Set-Point Range: 45 to 99°F (7 to 37°C)
| Specification | |
|---|---|
| Stages (Heat Pump) | 2 Heat, 1 Cool | Power Method | Hardwire (24Vac) | Program Options (Days) | 5+1+1 | Display Size | 1.2 sq. in. | WiFi Capability | No | Temporary Hold | Yes | Permanent Hold | Yes | Millivolt Compatible | No | Touchscreen | No | Battery Backup | No | Filter Indicator | Yes | Humidification Controls | No | Key Pad Lockout | No | Remote Sensing Capability | No | Backlight | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.585 | Exterior Dimensions (D) (inches) | 1.500000 | Exterior Dimensions (W) (inches) | 4.750000 | Exterior Dimensions (H) (inches) | 3.750000 | Shipping Weight (lbs) | 0.800000 |
