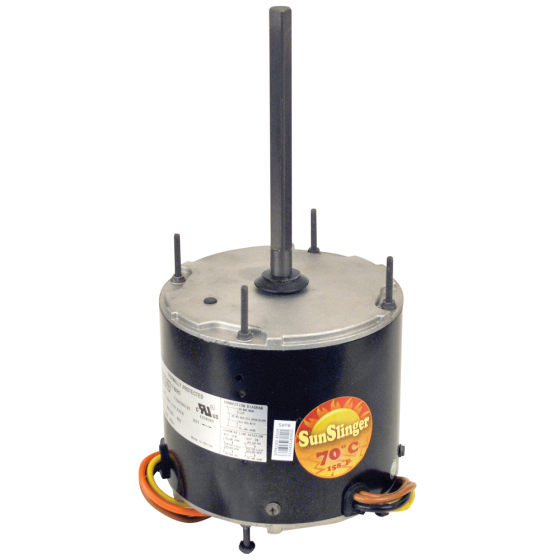

MARS 70°C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
FEATURES & BENEFITS
• Motor Type: PSC • Enclosure: TEAO • H.P. (Max.): 1/3 • Voltage: 208-230 • Speeds: 1 • Hz: 60 • Rotation: REV • RPM Range: 1075 • NEMA Frame Size: 48 • Phase: Single • Standards: CUL • FLA: 2.4 • Mount: All Angle • Bearing: Ball • Shaft Length Inches: 6.5 • Shaft Dia Inches: 1/2 • Thermal Protection: Auto • Ambient Deg C: 70 • Ins. Class: Class B • Capacitor Included: No • Capacitor Rating: 7.5/370 • Rheem mounting holes w/screws installed • Trane 4.33 bolt circle mounting holes with self tapping screws • Thru bolt or band mounting • Water slinger on shaft • Capacitor requirement noted on motor label • Extra set of nuts on mounting studs • Fan duty, continuous, air over • Totally enclosed • 36 inch leads
