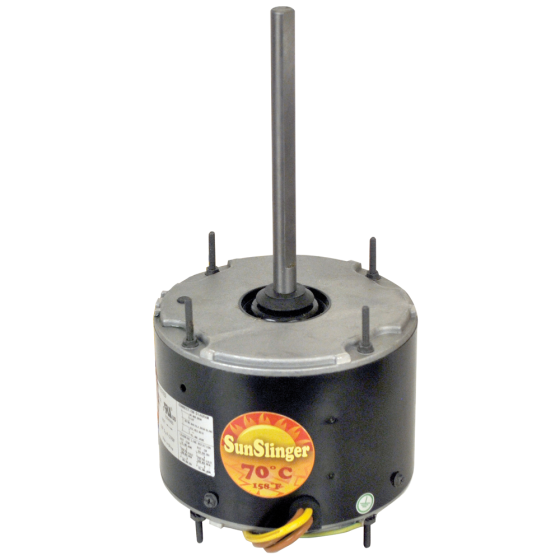

MARS 70°C SunSlinger totally enclosed outdoor condenser fan motors are designed for all angle air conditioning or heat pump applications. A weep hole is provided in each end shield to allow condensate to drain.
FEATURES & BENEFITS
• Motor Type: PSC • Enclosure: TEAO • H.P. (Max.): 1/3 • Voltage: 460 • Speeds: 1 • Hz: 60 • Rotation: REV • RPM Range: 1075 • NEMA Frame Size: 48 • Phase: Single • Standards: CUL • FLA: 0.9 • Mount: Thru Bolt/All Angle • Bearing: Ball • Shaft Length Inches: 6.5 • Shaft Dia Inches: 1/2 • Thermal Protection: Auto • Ambient Deg C: 70 • Ins. Class: Class F • Capacitor Included: No • Capacitor Rating: 7.5/440 • Rheem mounting holes w/screws installed • Trane 4.33 bolt circle mounting holes and self tapping screws • Extended thru bolt or band mounting and extra nuts • Capacitor requirement noted on motor label • Water slinger on shaft • End shield drain holes w/plugs • Totally enclosed • 36 inch leads
