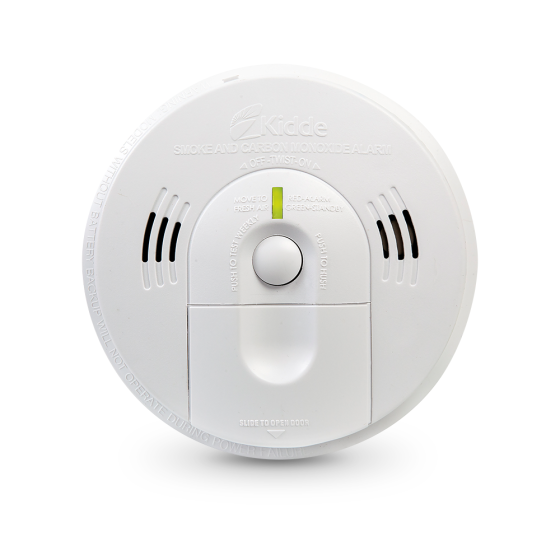

Kidde Intelligent Alarm Combination Smoke & Carbon Monoxide Alarm (Battery Operated)

APPLICATIONS

The Kidde KN-COSM-XTR-BA uses breakthrough technology to offer a fast response to real fires, including smoldering and fast-flaming, as well as protect you from carbon monoxide and dramatically reduce the chance of nuisance alarms. In addition, the Intelligent Alarm contains a voice warning that clearly states the present danger – smoke or carbon monoxide – and announces “FIRE!” or “WARNING! CARBON MONOXIDE!” The Intelligent Alarm combines the detection capabilities of an ionization smoke sensor – which is more likely to detect smaller, less visible fire particles, like those produced by flaming fires – with that of an electrochemical sensor, which is used to detect CO.

Since carbon monoxide is present in all fires, having both detection chambers work together in one alarm is a breakthrough in the fire safety industry. When either sensor notices a potential hazard, it will communicate with the other. Depending on what is detected, the alarm will adjust its smoke sensitivity in order to better discriminate between a real hazard and a false one. This constant communication enhances the alarm’s overall performance in all fires, and significantly reduces the potential for a nuisance alarm.

This alarm uses ionization sensing technology. Leading authorities recommend that both ionization and photoelectric smoke alarms be installed to help ensure maximum detection of the various types of fires that can occur within the home. Ionization sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionization alarms.

FEATURES & BENEFITS

• The red LED will flash and be accompanied by three long alarm beeps followed by a verbal warning message “FIRE!”. The alarm pattern will repeat until smoke is eliminated.
• Four short alarm beeps followed by a verbal warning “WARNING! CARBON MONOXIDE!” This continues until the unit is reset or the CO is eliminated.
• If any form of battery failure is detected the red LED light will flash and the unit will “chirp” once every 60 seconds for at least 7 days. The “LOW BATTERY” voice occurs once every 15 minutes. The green LED will also be flashing twice per second.
• “HUSH MODE ACTIVATED” and “HUSH MODE CANCELLED” voice announcement.
• If the alarm had detected a CO level of 100ppm or higher, the unit will announce “CARBON MONOXIDE PREVIOUSLY DETECTED” to warn of the CO incident, when the Test/Reset button is pressed.
• Voice Alarm - Announces the hazard type detected thereby helping to speed up the correct reaction to the hazard detected. Alarm announces “Fire, Fire” when a smoke or fire hazard is detected and announces “Warning Carbon Monoxide” when a CO hazard is detected.
• Combined Carbon Monoxide and Smoke Alarm - A single unit can be installed where previously, two were needed. Reduces installation time and helps to keep home décor attractive.
• Test/Reset Button - Tests alarm circuitry and triggers the voice announcement.
• LEDs - Flashing green for normal operation and flashing red for alarm condition.
• Low Battery Warning - The unit warns of a low battery condition by announcing “low battery” and by initiating an alarm chirp and activating a flashing red LED.
• Battery Powered - Provides protection even during power outages when many fire and carbon monoxide incidents occur.
• Battery Safeguard - The battery door will not close unless the batteries are properly installed.
• Hush® Feature - Temporarily silences nuisance alarms.
• Model: KN-COSMXTR-BA
• Power Source: 2 AA Batteries
• Sensor: Smoke Ionization, CO: Electrochemical
• Audio Alarm: 85dB at 10ft
• Temperature Range: 40˚F (4.4˚C) to 100˚F (37.8˚C)
• Humidity Range: 10%-95% relative humidity, non-condensing
• Interconnects: No
