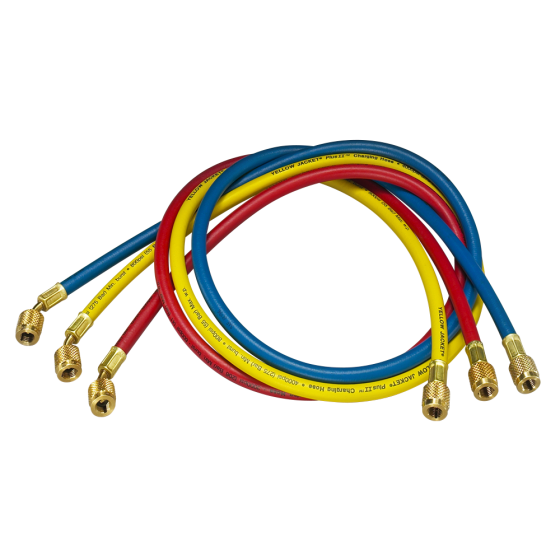

Yellow Jacket® Plus II™ Charging Hose Kit 800 psi, 1/4" x 1/4" x 72"
Item
21986
FEATURES
• UL recognized assemblies (File SA9737)• The nylon permeation barrier meets SAE requirements J2196 for CFC, HCFC, HFC refrigerants
• Barrier provides improved resistance to moisture migration which contaminates expensive refrigerant
• 1/4" RYB PLUS II™ hoses are rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure and an operating temperature of -20º to 180ºF (-28.8º to 82.2ºC)
• Minimum bend radius: 6" (152 mm)
• Made in the USA
| Specification | |
|---|---|
| Length | 72 in. | Fitting Size | 1/4" x 1/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.72 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 8.500000 | Exterior Dimensions (H) (inches) | 1.500000 | Shipping Weight (lbs) | 5.000000 |
