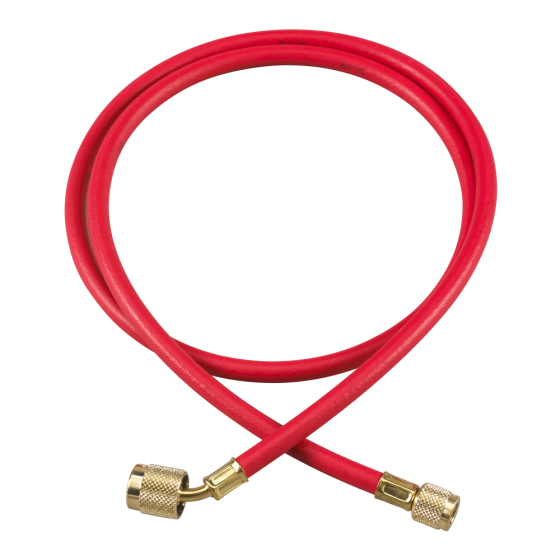

Yellow Jacket® Plus II™ SealRight™ Charging Hose with Low Loss Anti Blow-Back Fitting 800 psi, 1/4" x 1/4" x 60" (Red)
Item
22660
FEATURES
• 45° end for easy installation in tight areas• Gaskets resist deterioration from existing CFC, HCFC, HFC and HFO refrigerants and oils
• Available with SealRight fittings on both ends
• UL recognized assemblies (File SA9737)
• 1/4″ RYB PLUS II™ hoses are rated for 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure and an operating temperature of -20° to 180°F (-28.8° to 82.2°C)
• Minimum bending radius: 6″ (152mm)
• Made in the USA
| Specification | |
|---|---|
| Length | 60 in. | Fitting Size | 1/4" x 1/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 8.250000 | Exterior Dimensions (W) (inches) | 11.000000 | Exterior Dimensions (H) (inches) | 1.750000 | Shipping Weight (lbs) | 3.000000 |
