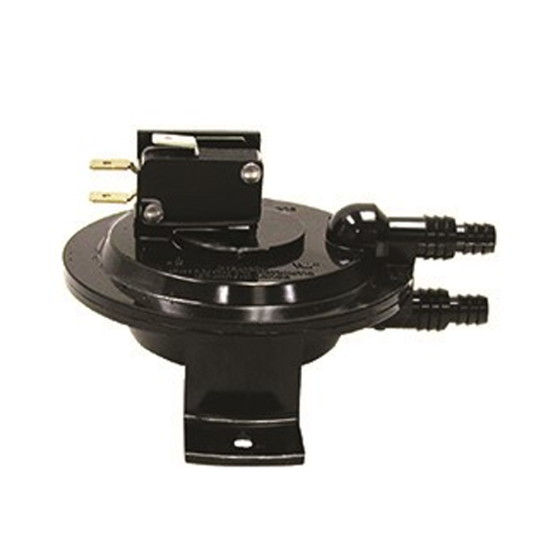

Vacuum Pressure Switch, Adjustable -40°F-190°F

APPLICATIONS

The Robertshaw® 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air sensing switches found in residential and light commercial applications including furnaces, electronic air cleaners and humidifiers. Two models are currently available with adjustable ranges. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (-40°C to 88°C). Each switch includes mounting hardware and an adjustment tool for easy installation and calibration.

FEATURES & BENEFITS

• Field adjustable control set point
• Air sample line connectors will accept 1/8”, 1/4” or 3/8” tubing
• Electrical connection is 1/4” spade
• Vertical operating mounting position for diaphragm
• UL File Number MH6213, CSA File Number LR18754
• Series Application: Adjustable Air Sensing Switch
• Switch: SPDT
• Set Point Range: 0.25" to 1.0" WC
• Maximum Pressure: 0.5 PSI
• Temperature Range: -40°F to 190°F (-40°C to 88°C)
• Electrical Rating: 5 Amps @ 120-277V AC|5 Amps @ 28V DC|1 Amp Pilot Duty 120VA

CROSS REFERENCE

• YORK INTERNATIONAL - 024-35978-000
• ARMSTRONG - 101432-13
• LENNOX INDUSTRIES - 10U93
• LENNOX INDUSTRIES - 10U94
• UNI-LINE - 12533
• GOODMAN MFG. - 20197312
• Robertshaw - 2374-510
• LENNOX INDUSTRIES - 27W17
• A.O. SMITH - 37002-35
• GRAINGER - 3ZM96
• RHEEM - 42-102069-08
• UNI-LINE - 66201312533
• UNI-LINE - RSS-495
• SUPCO - RSS495011
• CLEVELAND CONTROLS - RSS495-037
• CLEVELAND CONTROLS - RSS-495-11
• A.J.ANTUNES - SMM
