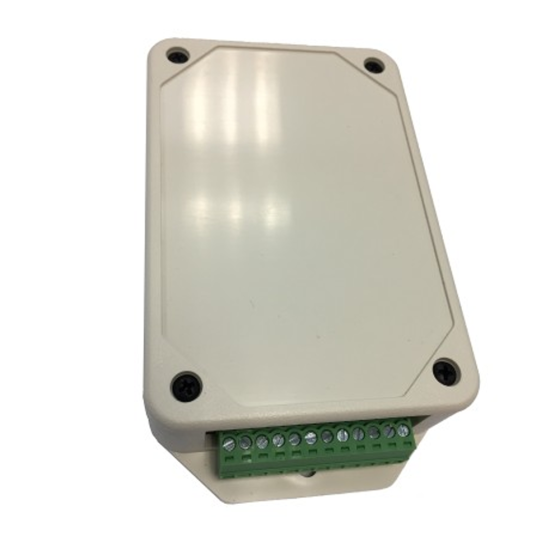

24V Thermostat Interface

FEATURES

• Connectable with various 3rd party Thermostat including Carrier COR to VRF (SMMS-e, SHRM-e) and SDI (RAV)
• Provides 3 Fan speed control; - High, - Medium, - Low
• One 24V Thermostat Interface per indoor unit
• Indoor unit modes; - Cooling, - Heating, -Fan, - OFF
• Connection: AB - Remote controller Terminal of indoor units

Temperature control
• Auto (Variable capacity)
• Fixed capacity

Minimum run time setting
• 5 minutes
• 10 minutes

SPECIFICATIONS

• Power Supply: DC18V (+0%, -20%) (provided by an indoor unit), AC24V (±10%)
(24V Thermostat Interface circuit; provided by field procured transformer)
• Input Power (Watt): 0.5
• Operating Current (mA / VDC): 40 (18)
• Operating Temperature Range: 32 °F to 104 °F (0 °C to 40 °C), 10% to 90% RH (no condensation)
• Storage temperature range: -4 °F to 140 °F (−20 °C to +60 °C), 10% to 90% RH (no condensation)

Dimensions
• Height (in): 1-1/8
• Width (in): 5-1/8
• Depth (in): 2-7/8
• Net Weight: lbs 0.25
