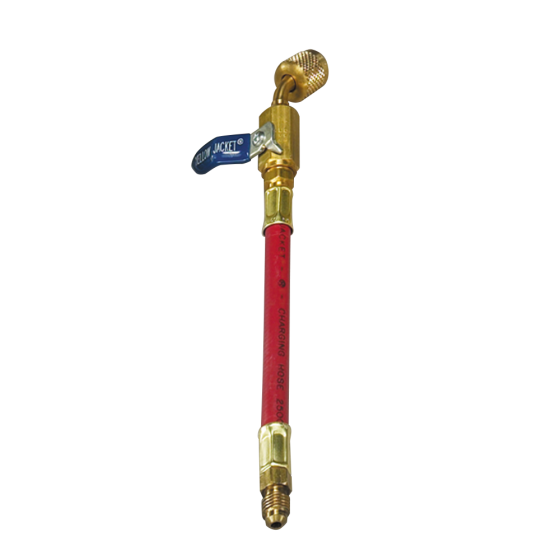

Yellow Jacket® Ball Valve Hose Adapter 800 psi, 1/4" x 1/4" x 9" (Red)
Item
29601
FEATURES
• Flexible hose between valve and fitting for handling in tight areas• Operating temperature -20° to 180°F (-28.8° to 82.2°C)
• 4000 psi (276 bar) minimum burst and 800 psi (55 bar) maximum working pressure
• Minimum bend radius: 8″ (203 mm)
• UL recognized assemblies (File SA9737) (Valves SA10088)
• Made in the USA
| Specification | |
|---|---|
| Length | 9 in. | Fitting Size | 1/4" x 1/4" |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.31 | Exterior Dimensions (D) (inches) | 14.500000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 0.500000 | Shipping Weight (lbs) | 3.000000 |
