3-Phase Heat Pump

Carrier VRF

VRF Heat Pump System

72,000 to 432,000 Btuh
6.0 to 36.0 Tons

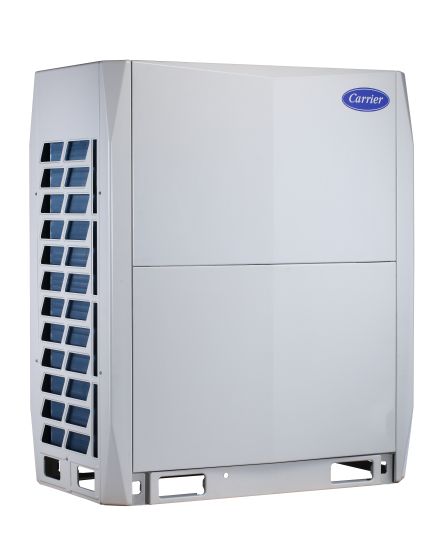

The Carrier 38VMH VRF heat pump system is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring.  Heat pump capacity ranges from 6 tons up to 36 tons in a modular design, available as single, double or triple module.

Compatible Indoor Units & Controls

The 38VMH heat pump system can be matched with the following indoor units and controls: 40VMA, 40VMC, 40VMD, 40VMF, 40VMH, 40VML, 40VMM, 40VMR, 40VMU, 40VMV, 40VMW & 40VM9 (controller)

Product Features

• Available in 6, 8, 10, 12 ton single module which can be combined up to 36-tons capacity
• Ability to connect up to 64 multiple style indoor units with a triple module outdoor unit
• Piping flexibility up to 3280 ft.
• High performance outdoor units with all inverter-driven scroll compressor
• DC inverter condenser fan motor
• 208/230-3-60Hz or 460-3-60Hz voltage
• Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -4⁰ F to 60⁰ F
• Connected capacity is up to 135%

Reliability Features

• All equipment wiring complies with NEC requirements
• Unit constructed in accordance with ETL requirements
• Unit performance is in accordance with AHRI 1230 standards
• Compressor and condenser fan motor are inverter driven
• Finned tube heat exchanger
• Suitable for R-410a refrigerant

Installation Features

• System utilizes 2-pipes to connect to up to 64 indoor units
• Integrated controls design allows for complete system control
• System can be auto addressed
• System utilize quick connect controls system
