Zonefirst 2 or 3-Zone Control Panel (2H/2C Conventional, Heat Pump, Dual Fuel)

FEATURES

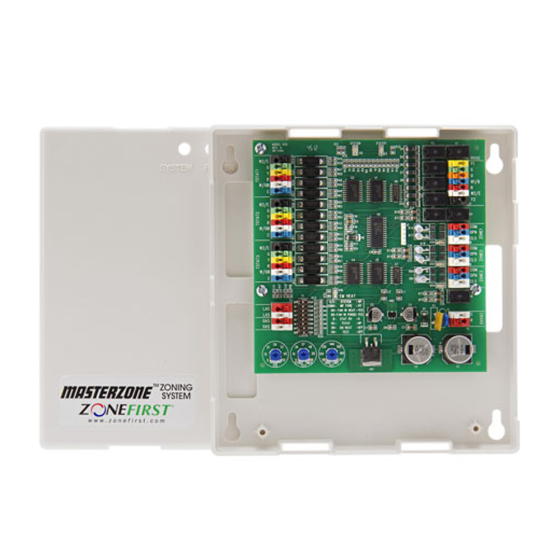

The H32 Control is a three-zone control panel that can be used with conventional single stage, two stage heating and cooling and heat pumps with or without dual fuel and two speed heat pumps for up to three stages of heating. The H32 panel is the central control panel that all zone dampers, zone thermostats, HVAC Equipment Controls, power transformer, Outdoor Air (OAS) and Leaving Air Sensor (ZPS) are wired.

• 24V, universal 2 or 3 Zone Panel for Heat Pumps, Dual Fuel and Conventional 2 heat/ 2 cool.
• Built in DIP switches that set desired functions for type of HVAC equipment outputs and zone thermostats used.
• ZPS sensor to provide capacity control of the equipment.
• Optional OAS sensor to provide changeover points for dual/fossil fuel applications.
• Compatible with any 4/5 wire thermostats.
• Built in LEDs indicate system status and indicators to show each zone’s call.
• Color-coded, push-in terminal blocks makes wiring simple and fast.
• Used with 24VAC motors only.
