30RB AquaSnap® 30RB with Greenspeed® Intelligence Air-Cooled Liquid Chiller with Puron® Refrigerant (R-410A)

Item

30RB

Skip to the beginning of the images gallery

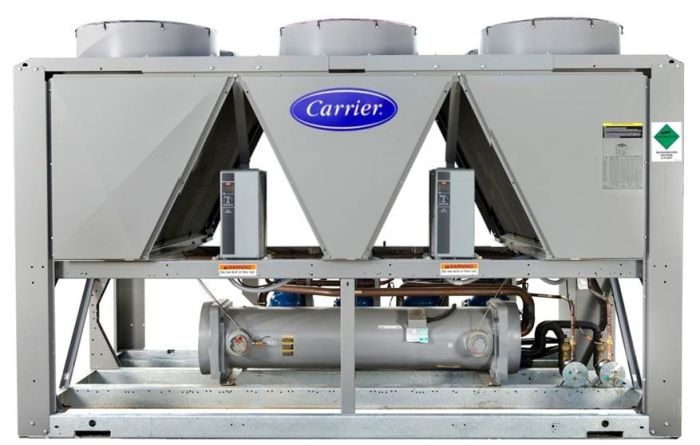

30RB with Greenspeed® Intelligence
Air-Cooled Liquid Chiller
with Puron® Refrigerant (R-410A)

60 to 390 Nominal Tons

The AquaSnap 30RB chiller is an effective all-in-one package that is easy to install and easy to own. The chiller costs less to purchase and install and then operates quietly and efficiently. Value-added features include rotary scroll compression, Puron® refrigerant (R-410A), a quiet AeroAcoustic™ fan system, easy to use ComfortLink™ controls, microchannel condenser coil technology, optional integrated hydronic pump package (with or without VFD), optional full heat recovery package, and optional high-efficiency variable condenser fans (Greenspeed® intelligence). Greenspeed intelligence results in best-in-class part-load efficiency with quiet part-load operation.

Air cooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org

Performance Features

Full-load EER values up to 10.3 and IPLV values up to 17.1 (units with Greenspeed intelligence)
ASHRAE 90.1 complaint / AHRI certified
High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels
Operation from -20 °F to 125 °F ambient conditions
Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) condenser coils
Hydronic pump package (with or without VFD) on sizes 060-190
Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package)

Additional Important Options

Energy Management Module minimizes chiller energy consumption
Non-fused disconnect switch
Minimum load control
Low ambient head pressure control
ComfortLink™ controls with scrolling marquee display module
BACnet™ communication or BACnet and LON translator control
EXV (electronic expansion valve)

Reliability Features

ASME constructed evaporators / ETL (and ETL Canada) listed
Heavy-gauge galvanized steel frame
Security grilles and Hail guards/Privacy screen choices
Low ambient head pressure control
Coil corrosion coatings available on all coil types
High short circuit current rating
EXV (Electronic expansion valve)

Maintenance Features

Over 15 diagnostic functions
Permanently lubricated fan motor bearings
Compressor suction service valves
Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
Unit-mounted, non-fused disconnect
Remote service port for easier machine diagnostics

Installation Features

Factory charged with Puron refrigerant (R-410A)
Integrated hydronic pump package (with or without VFD) on sizes 060-190 (factory-installed option, but N/A with heat recovery option)
Full heat recovery on sizes 060-190 (factory-installed option, but N/A with hydronic package)
Remote cooler kit
Single or dual-point electrical connections available
Integral control transformer
Structurally robust base

Standard Warranty

3 year coil parts only on Novation microchannel heat exchanger
One year from start-up or 18 months from shipment limited warranty
Extended warranty packages available

30RB Standard Units - AHRI Capacity Ratings*

Size	Capacity (Tons)	Capacity (kW)	Compressor (kW)	Fan (kW)	Total Power (kW)	Full Load		IPLV
Size	Capacity (Tons)	Capacity (kW)	Compressor (kW)	Fan (kW)	Total Power (kW)	EER	COR	EER	COR
060	57.1	200.6	60.3	10.3	70.6	9.7	2.8	13.1	3.8
070	66.2	232.8	70.1	10.3	80.4	9.9	2.9	13.4	3.9
080	76.0	267.3	83.1	10.3	93.4	9.8	2.9	14.3	4.2
090	86.6	304.6	85.2	15.5	100.7	10.3	3.0	13.7	4.0
100	92.8	326.5	94.1	15.5	109.6	10.2	3.0	13.5	4.0
110	106.0	372.8	110.2	15.5	125.7	10.1	3.0	13.9	4.1
120	118.0	415.0	119.7	18.1	137.7	10.3	3.0	13.8	4.0
130	127.4	448.1	129.6	20.6	150.2	10.2	3.0	13.8	4.0
150	140.0	492.4	145.9	20.6	166.6	10.0	3.0	13.6	4.0
160	152.8	537.5	151.7	25.8	177.5	10.3	3.0	13.6	4.0
170	164.1	576.9	168.0	25.8	193.8	10.2	3.0	13.6	4.0
190	186.1	654.7	188.8	31.0	219.7	10.2	3.0	13.4	3.9
210	195.4	687.3	208.3	31.0	239.3	9.8	2.9	13.3	3.9
225	206.2	725.0	222.2	31.0	253.1	9.8	2.9	13.4	3.9
250	227.6	800.3	243.2	36.1	279.4	9.8	2.9	13.4	3.9
275	250.5	881.0	263.9	41.3	305.2	9.8	2.9	13.3	3.9
300	271.8	955.8	283.9	46.5	330.4	9.9	2.9	13.2	3.9
315	305.7	1075.1	303.4	51.6	355.0	10.3	3.0	13.6	4.0
330	316.9	1114.5	319.7	51.6	371.3	10.2	3.0	13.6	4.0
345	328.1	1153.9	336.0	51.6	387.6	10.2	3.0	13.6	4.0
360	350.2	1231.6	356.7	56.8	413.5	10.2	3.0	13.4	4.0
390	372.3	1309.3	377.5	61.9	439.5	10.2	3.0	13.4	4.0

Size	Cooler Flow Rate (Gpm)		Cooler Pressure Drop
Size	GPM	L/s	(ft)	(kPa)
060	136.5	8.6	8.9	26.6
070	158.9	10.0	11.7	34.9
080	182.4	11.5	7.0	21.1
090	207.8	13.1	9.0	26.8
100	222.0	14.1	10.2	30.4
110	254.4	16.1	9.0	26.8
120	283.2	17.9	10.9	32.6
130	305.8	19.3	12.6	37.6
150	336.0	21.2	7.2	21.4
160	366.8	23.1	8.4	25.2
170	393.7	24.8	9.6	28.8
190	446.8	28.2	12.2	36.6
210	469.1	29.6	9.4	28.1
225	494.8	31.2	10.4	31.2
250	546.1	34.5	12.6	37.7
275	601.2	37.9	15.2	45.3
300	652.2	41.1	17.7	53.0
315	733.7	46.3	8.4	25.1
330	760.6	48.0	9.6	28.7
345	787.5	49.7	9.6	28.7
360	840.5	53.0	12.2	36.5
390	893.5	56.4	12.2	36.5

30RB Units with Greenspeed® Intelligence - AHRI Capacity Ratings*

Size	Capacity (Tons)	Capacity (kW)	Compressor (kW)	Fan (kW)	Total Power (kW)	Full Load		IPLV
Size	Capacity (Tons)	Capacity (kW)	Compressor (kW)	Fan (kW)	Total Power (kW)	EER	COR	EER	COR
080	76.0	267.4	83.1	10.3	93.4	9.8	2.9	15.8	4.6
090	86.6	304.6	85.2	15.5	100.7	10.3	3.0	16.0	4.7
100	92.8	326.5	94.1	15.5	109.6	10.2	3.0	15.9	4.6
110	106.0	372.8	110.2	15.5	125.7	10.1	3.0	16.7	4.9
120	118.0	415.0	119.7	18.1	137.8	10.3	3.0	16.9	4.9
130	127.4	448.1	129.6	20.6	150.2	10.2	3.0	16.8	4.9
150	140.0	492.4	146.0	20.6	166.7	10.1	3.0	16.8	4.9
160	152.8	537.5	151.7	25.8	177.4	10.3	3.0	17.0	5.0
170	164.1	576.9	167.8	25.8	193.8	10.2	3.0	17.1	5.0
190	186.1	654.7	188.8	31.0	219.8	10.2	3.0	17.1	5.0
210	195.4	687.4	208.3	31.0	239.3	9.8	2.9	16.3	4.8
225	206.1	725.0	222.2	31.0	253.2	9.8	2.9	16.4	4.8
250	227.6	800.3	243.2	36.1	279.4	9.8	2.9	16.4	4.8
275	250.5	880.9	263.9	41.3	305.2	9.8	2.9	16.4	4.8
300	271.8	955.7	283.8	46.5	330.2	9.9	2.9	16.4	4.8
315	305.7	1075.1	303.2	51.6	354.9	10.3	3.0	17.0	5.0
330	316.9	1114.5	319.4	51.6	371.1	10.2	3.0	17.1	5.0
345	328.1	1153.9	335.6	51.6	387.3	10.2	3.0	17.1	5.0
360	350.2	1231.6	356.6	56.8	413.4	10.2	3.0	17.1	5.0
390	372.3	1309.3	377.6	61.9	439.5	10.2	3.0	17.1	5.0

Size	Cooler Flow Rate (Gpm)		Cooler Pressure Drop
Size	GPM	L/s	(ft)	(kPa)
080	182.5	11.5	7.1	21.1
090	207.8	13.1	9.0	26.8
100	222.8	14.1	10.2	30.4
110	254.4	16.1	9.0	26.8
120	283.3	17.9	10.9	32.6
130	305.8	19.3	12.6	37.6
150	336.0	21.2	7.2	21.4
160	366.8	23.1	8.4	25.2
170	393.7	24.8	9.6	28.8
190	446.8	28.2	12.2	36.6
210	469.1	29.6	9.4	28.1
225	494.8	31.2	10.4	31.2
250	546.1	34.5	12.6	37.7
275	601.2	37.9	15.2	45.3
300	652.2	41.2	17.7	53.0
315	733.7	46.3	8.4	25.2
330	757.9	47.7	9.0	26.8
345	787.4	49.7	9.6	28.8
360	840.5	53.0	12.2	36.6
390	893.5	56.4	12.2	36.6

LEGEND
COP = Coefficient of Performance
IPLV = Integrated Part Load Value
EER = Energy Efficiency Ratio

*Air Conditioning, Heating & Refrigeration Institute

NOTES
1. Based on AHRI-550/590 standard rating conditions. Ratings are for standard chillers only. Ratings do not include options.
2. Standard rating conditions are as follows:

Cooler Conditions:
Leaving water temperature: 44°F (6.7°C)
Flow rate: 2.4gpm/ton (0.043 l/s/k/W)

Fouling Factor:
0.00010 hr x sq ft °F/Btu (0.000018m²x °C/W)

Condenser Conditions:
Entering Air Temperature: 95°F (35°C)

3. 30RB with Greenspeed Intelligence is not available on unit sizes 060 and 070.

30RB Weights and Dimensions

Size	Operating Weight* (Lbs)	Dimensions (ft-in)
Size	Operating Weight* (Lbs)	Length	Width	Height
060	4,593	7-11	7-4	7-6
070	4,799	7-11	7-4	7-6
080	5,082	7-11	7-4	7-6
090	6,656	11-10	7-4	7-6
100	6,879	11-10	7-4	7-6
110	7,243	11-10	7-4	7-6
120	8,534	15-9	7-4	7-6
130	9,010	15-9	7-4	7-6
150	10,139	15-9	7-4	7-6
160	11,472	19-8	7-4	7-6
170	11,807	19-8	7-4	7-6
190	13,460	23-7	7-4	7-6
210	15,181	23-7	7-4	7-6
225	15,514	23-7	7-4	7-6
250	17,157	27-6	7-4	7-6
275	18,845	31-5	7-4	7-6
300	20,477	35-4	7-4	7-6
315	11,472/11,472**	19-8/19-8	7-4	7-6
330	11,807/11,472**	19-8/19-8	7-4	7-6
345	11,807/11,807**	19-8/19-8	7-4	7-6
360	13,460/11,807**	23-7/19-8	7-4	7-6
390	13,460/13,460**	23-7/23-7	7-4	7-6

*Cu-Al Coils
**Module A/Module B

Factory-Installed Options

High efficiency variable condenser fans (Greenspeed intelligence)
Hydronic pump package with or without VFD (sizes 060-190)
Heat Reclaim
Condenser coil options:
- Microchannel:
  - Non-coated
  - E-coated
- Aluminum fins:
  - Non-coated
  - Pre-coated
  - E-coated
- Copper fins:
  - Non-coated
  - E-coated
Non-fused disconnect
Minimum load control
Security grilles
Energy Management Module
Compressor sound reduction enclosures
Service option
Compressor suction service valve
Condenser coil trim panels
Condenser coil upper hail guards
Full end screen
BACnet™ Communication
BACnet™ translator control
LON (local operating network) translator control
Low ambient temperature head pressure control
Single or dual-point electrical connection
Freeze protection (cooler heaters)
Suction line insulation
High short circuit current rating
CRN cooler

Field-Installed Accessories

Minimum load control
Security grilles
Condenser coil full hail guards
Navigator™ display
Remote enhanced display
Chillervisor System Manger III multi-unit control
GFI convenience outlet
Energy Management Module
Touch Pilot™ display
LON (local operating network) translator control
BACnet™ translator control
Remote service port
Remote cooler
Condenser coil trim panels
Low ambient temperature head pressure control
Dual-chiller accessory kit

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	1.000000
Exterior Dimensions (W) (inches)	1.000000
Exterior Dimensions (H) (inches)	1.000000
Shipping Weight (lbs)	1.000000

Warranty
Compressor Warranty	1 Year
Parts Warranty	1 Year
