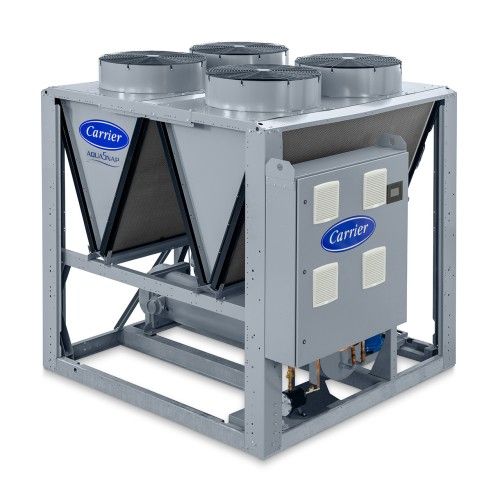

30RC AquaSnap® Air-Cooled Scroll Chiller
Greenspeed® Intelligence and HFC Refrigerant R-32 (or R-410A)
60 to 150 Nominal Tons
The AquaSnap® 30RC chiller is an effective all-in-one package that is easy to install and easy to own. The chiller costs less to purchase and install and then operates quietly and efficiently. Value-added features include rotary scroll compression, HFC refrigerant R-32 (or R-410A), a quiet AeroAcoustic™ fan system, easy to use PIC6 controls, microchannel condenser coil technology (or optional AlCu coils), optional integrated hydronic pump package (with or without VFD), optional desuperheater, and optional high-efficiency variable condenser fans (Greenspeed® intelligence). Greenspeed intelligence results in best-in-class part-load efficiency with quiet part-load operation.
Aircooled chillers within the scope of the ACCL certification program are certified in accordance with the AHRI Air-Cooled Water-Chilling Packages Certification Program, which is based on AHRI Standard 550/590 (I-P) and AHRI Standard 551/591 (SI). Certified units may be found in the AHRI Directory at www.ahridirectory.org.
FEATURES
Performance Features
- Full-load EER values up to 10.9 and IPLV values up to 18.0 (units with Greenspeed intelligence)
- ASHRAE 90.1 complaint / AHRI certified
- High efficiency variable condenser fans (Greenspeed intelligence) / Low sound levels
- Operation from -20 °F to 125 °F ambient conditions
- Standard uncoated or optional e-coated Novation® microchannel heat exchanger (MCHX) or Aluminum-Copper condenser coils
- Hydronic pump package (with or without VFD) on sizes 065-152
- Desuperheater
- Robust Brazed-Plate or Shell-and-Tube evaporator
- Compact unit design
- PIC6 graphic display with BACnet™ IP or MS/TP
Additional Important Options
- Energy Management Module minimizes chiller energy consumption
- Non-fused disconnect switch
- Minimum load control
- PIC6 7-inch display pairs with Carrier Comfort Network©
- Al/Cu e-coated condenser coil
- Pairable with Free-Cooling (09FC)
- Low GWP refrigerant R-32
- Security grilles and Hail guards/Privacy screen choices
- Greenspeed intelligence (low ambient operation)
- Coil corrosion coatings available on all coil types
- High short circuit current rating
Reliability Features
- ASME constructed DX evaporators
- ETL (and ETL Canada) listed
- Galvanized steel frame
- EXV (Electronic expansion valve)
Maintenance Features
- Diagnostic functions available through PIC6: Touch Screen Control Panels
- Permanently lubricated fan motor bearings
- Compressor suction service valves (option)
- Microchannel condenser coils with inherent corrosion resistance and offering simplified cleaning
- Unit-mounted, non-fused disconnect (option)
- Remote connectivity for easier machine diagnostics
Installation Features
- Factory charged with low GWP HFC refrigerant R-32 (or R-410A)
- Integrated hydronic pump package (with or without VFD) on sizes 065-152 (factory-installed option, but N/A with desuperheater option)
- Single or dual-point electrical connections available
- Integral control transformer
- Galvanized steel frame
Standard Warranty
- 3 year coil parts only on Novation microchannel heat exchanger
- One year from start-up or 18 months from shipment limited warranty
- Extended warranty packages available
California residents please see Proposition 65
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
