OVERVIEW

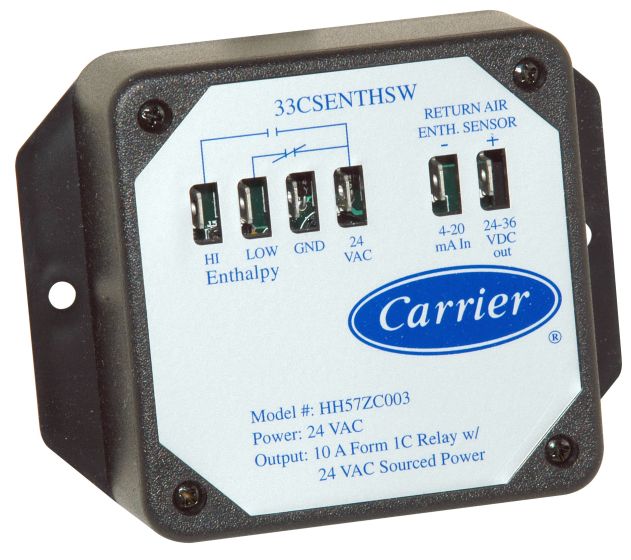

The accessory enthalpy switch/receiver measures both temperature and humidity and converts the data into a relay output dependent on the sensor mode. Mode 1 is designed to energize the relay at a fixed set point of 28 BTU/lb. or 75 F.
FEATURES
FEATURES & BENEFITS
- Advanced technology ceramic design enables sensors to recover fully from condensation
- Sensor maintains accuracy longer than conventional sensors
- Accuracy is maintained over the entire operating range by using temperature compensation
- Precise production tolerances allow sensor interchangeability
- Each sensor is tested to work at numerous points
SPECIFICATIONS
Operating range of -40 to 140°F (-40 to 60°C) and 0-100% RH non condensing
Enthalpy range of 0 to 50 Btu/lb.
Enthalpy accuracy of +/- 1Btu/lb. at 77°F (25°C)
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 3.350000 | Exterior Dimensions (W) (inches) | 3.750000 | Exterior Dimensions (H) (inches) | 4.250000 | Shipping Weight (lbs) | 5.000000 |
