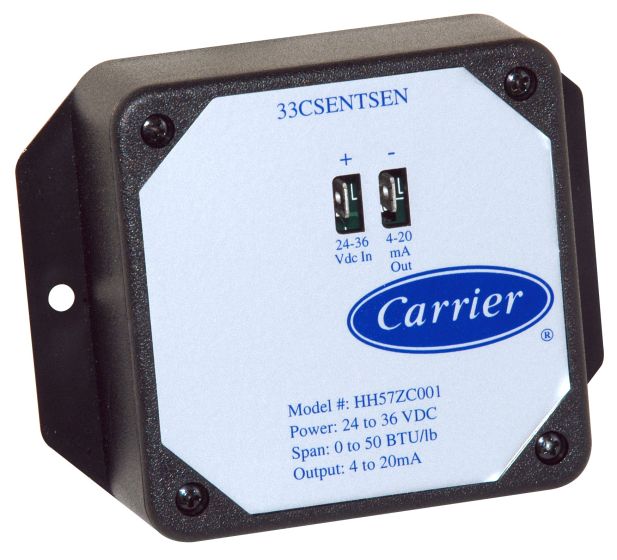

33CSENTSEN Premierlink Enthalpy Transmitter
Item
33CSENTSEN
FEATURES
• Advanced technology ceramic design enables sensors to recover fully from condensation• Sensor maintains accuracy longer than conventional sensors
• Accuracy is maintained over the entire operating range by using temperature compensation
• Precise production tolerances allow sensor interchangeability
• Each sensor is tested to work at numerous points
SPECIFICATIONS
• Operating range of -40 to 140°F (-40 to 60°C) and 0-100% RH non-condensing• Enthalpy range of 0 to 50 Btu/lb.
• Enthalpy accuracy of +/- 1Btu/lb. at 77°F (25°C)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 3.350000 | Exterior Dimensions (W) (inches) | 3.750000 | Exterior Dimensions (H) (inches) | 4.250000 | Shipping Weight (lbs) | 5.000000 |
