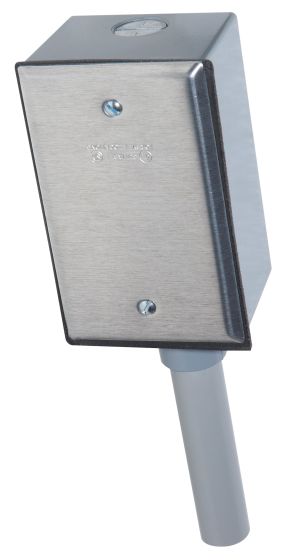

33ZCSENOAT Outdoor Air Temperature Sensor w/ Bell Box Enclosure
Item
33ZCSENOAT
FEATURES
• The outdoor temperature sensor consists of a waterproof metal housing.SPECIFICATIONS
• Sensor Type: 10K Ohms (Type II)• Output: 10K Ohms @ 77°F (25°C)
• Accuracy: +/- 0.36°F (0.2 °C) (32 to 158°F) (0 to 70°C)
• Dissipation Constant: 3 mWatt/°C
• Temperature range: -40 to 302°F (-40 to 150°C)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 4.920000 | Exterior Dimensions (W) (inches) | 2.810000 | Exterior Dimensions (H) (inches) | 4.560000 | Shipping Weight (lbs) | 3.000000 |
