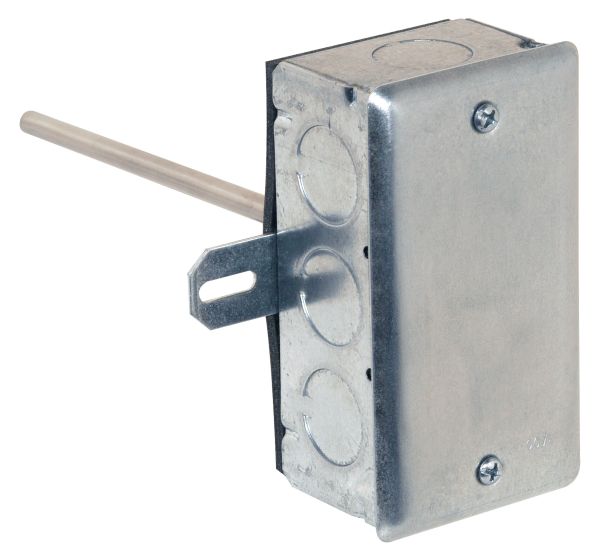

33ZCSENPAT Primary Air Temperature Sensor
Item
33ZCSENPAT
FEATURES
Carrier's HVAC Controls 33ZCSENPAT primary air temperature sensor is required on a linkage coordinator zone controller if the zone controller is not using a CCN linkage compatible air source. The sensor is used to monitor the equipment's supply-air temperature. The temperature can be broadcast to the zone controllers which receive information from a linkage coordinator. The sensor has an operation range of -40 to 245 F.
The sensor consists of a thermistor encased within a stainless-steel housing with 5 in. of exposed length. The sensor has 2 PTFE-insulated, stranded conductors.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 6.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 3.000000 |
