33ZCSENSAT Supply Air Temperature Sensor
Item
33ZCSENSAT
FEATURES
The 33ZCSENSAT supply air temperature sensor is required for all ducted heating applications and stand-alone operation using ComfortID™ HVAC Controls. The sensor is optional on cooling only applications and is used for supply air monitoring. The sensor has an operating range of -40 F to 245 F.

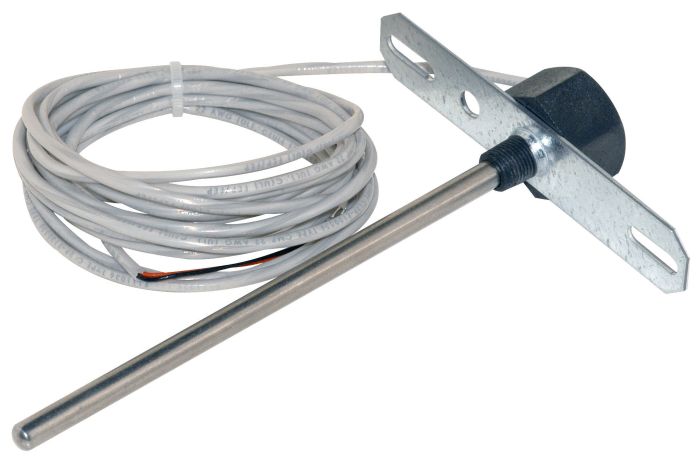

The sensor consists of a thermistor encased within a stainless-steel probe. The probe is 6 in. nominal length.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 0.080000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.900000 | Shipping Weight (lbs) | 3.000000 |
