Alternate Space Temperature Sensor with Override
Item
33ZCT55SPT
Overview

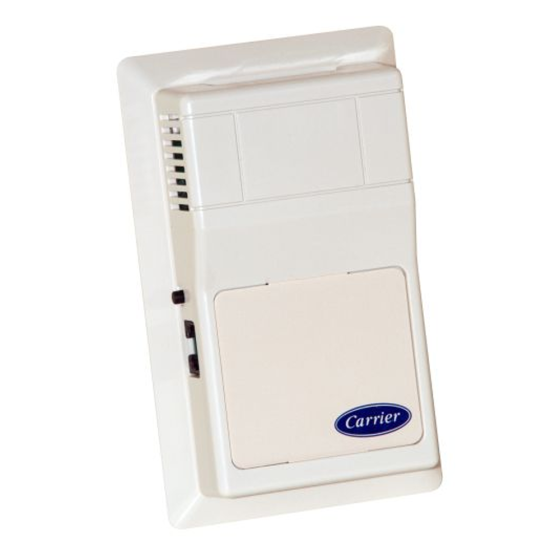

Space Temperature Sensor with Override
The Space Temperature Sensor is designed to complement any interior decor. The sensor has the following advantages over conventional thermostats:
- Elimination of drift and calibration
- Reduced maintenance cost
- Accurate temperature sensing
The sensor's integral override button allows a tenant to signal a request for an override of the occupancy schedule currently controlling the HVAC equipment in that zone. The override button shares the zone temperature sensor input, so this sensor requires only a single twisted shielded pair (tsp) for both occupancy override and space temperature sensing.
Features
FEATURES & BENEFITS
- Sleek, low profile complementing any interior decor
- Push-button override
- Accurate temperature sensing
- Reduced maintenance cost
- Elimination of drift and calibration
SPECIFICATIONS
| Connections | Labeled screw terminals |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Storage Temperature | -40°F to 160°F (-40°C to 70°C) |
| Humidity | 0% to 95%, non-condensing |
| Accuracy at 25°C | +/- 2% RH from 10 to 80%; +/- 3% RH from 80 to 99% |
| Dimensions | 4.51 in H X 2.75 in W X 1.15 in D (11.46 cm X 6.98 cm X 2.92 cm) |
| Color | Beige |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 1.200000 | Exterior Dimensions (W) (inches) | 2.750000 | Exterior Dimensions (H) (inches) | 4.500000 | Shipping Weight (lbs) | 3.000000 |
