Alternate Space Temperature Sensor with Override & Setpoint
Overview

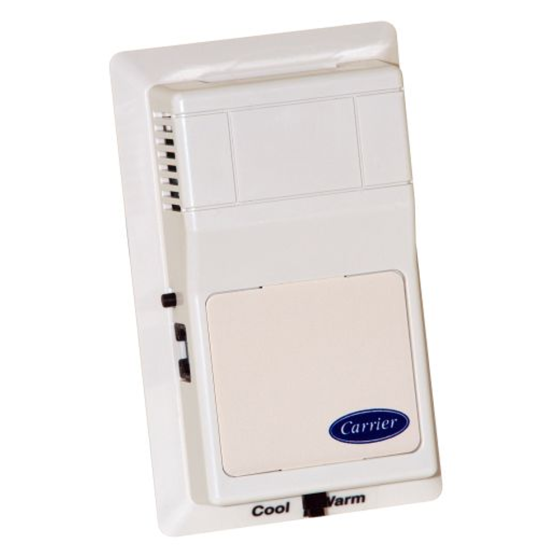

Space Temperature Sensor with Override and Setpoint Adjust
The Space Temperature Sensor is designed to complement any interior decor. The sensor has the following advantages over conventional thermostats:
- Elimination of drift and calibration
- Reduced maintenance cost
- Accurate temperature sensing
The sensor's override button and temperature offset slide are provided for the control of features in the device to which the sensor is connected. The corresponding features must be present and enabled in the device to which the sensor is connected in order for the button and/or slide to have any effect.
The sensor's integral override button allows a tenant to signal a request for an override of the occupancy schedule currently controlling the HVAC equipment in that zone.
The sensor's integral temperature slide switch allows an occupant to adjust (bias) the heating and cooling setpoints upward and downward by a configured amount.
Features
FEATURES & BENEFITS
- Sleek, low profile complementing any interior decor
- Push-button override
- Accurate temperature sensing
- Reduced maintenance cost
- Elimination of drift and calibration
- Heating and cooling set point adjustment
SPECIFICATIONS
| Connections | Labeled screw terminals |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Storage Temperature | -40°F to 160°F (-40°C to 70°C) |
| Humidity | 0% to 95%, non-condensing |
| Accuracy at 25°C | +/- 2% RH from 10 to 80%; +/- 3% RH from 80 to 99% |
| Dimensions | 4.51 in H X 2.75 in W X 1.15 in D (11.46 cm X 6.98 cm X 2.92 cm) |
| Color | Beige |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 1.200000 | Exterior Dimensions (W) (inches) | 2.750000 | Exterior Dimensions (H) (inches) | 4.500000 | Shipping Weight (lbs) | 3.000000 |
