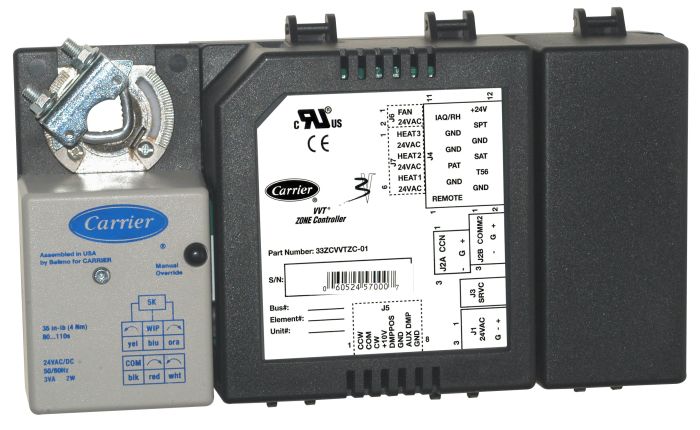

ComfortID™ Single Duct Air Terminal Zone Controller for Carrier Comfort Network® (CCN) System
Item
33ZCVVTZC-01
OVERVIEW
Product Integrated Controller
The Single Duct Air Terminal Zone Controller provides dedicated HVAC controls functions for single duct terminals with modulating heat or up to 2 stages of heat. The zone controller is part of the Carrier ComfortID™ system.
FEATURES
- Provides pressure independent (VAV) control
- Uses Proportional Integral Derivative (PID) control
- Mounts directly onto VAV box damper shaft
- Terminal fan control
- For terminals up to 9000 cfm or 3.4 sq ft inlet (primary air)
- Auxiliary heating control of modulating (floating) hot water, single-position hot water, single or two-stage electric, or zone two-stage electric, or zone perimeter heat
- Quick and easy commissioning and balancing process
- Automatic self calibration of airflow transducer
- Capable of stand-alone operation, with supply-air temperature sensor
- Actuator preassembled to housing
- Capable of demand controlled ventilation support with field-installed IAQ sensor
- Easy access to airflow sensor pneumatic connections
- Uses Carrier Comfort Network (CCN) protocol
- Capable of high-speed 38.4 kilobaud communications network operation
- 128 controller maximum system (must be located on same CCN bus segment)
- Capable of zone humidity control (dehumidification) with field-installed humidity sensor
- Carrier Linkage System capability
- Global set point and occupancy scheduling
- Provides a remote occupancy contact input for a field-supplied occupancy sensor
- Capable of local set point adjustment with field-installed temperature sensor (with temperature offset)
- Both controller housing and actuator are UL94-5V plenum rated
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 5 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 5.000000 |
