OVERVIEW
45 to 3,700 Nominal Cfm

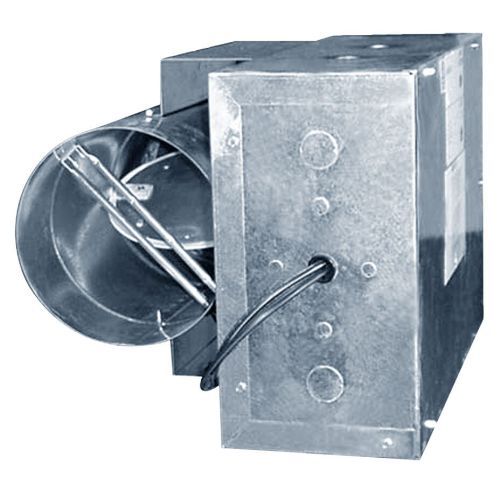

The 35J round tube, single-duct unit provides cooling only to meet retrofit and special application needs. Terminal units are designed to allow maximum flexibility in configuration and control. The small size of the unit ensures an easy fit in all applications.
FEATURES
Performance Features
- Airflow capacities from 45 to 3700 cfm
- Round inlet sizes from 4 in. through 16 in. diameter
- Rectangular inlet on size 22
- 22 gauge, galvanized steel casing construction
- Converts high-pressure mechanical constant volume systems to low-pressure variable volume systems
- Linear, multiple-point, averaging velocity sensor with an amplified signal
- Damper blade has a flexible gasket for tight airflow shutoff
- Damper blade operates over a full 90°
- All damper assemblies utilize a solid ½ in. shaft that rotates in self-lubricating Delrin® bearings
- Pressure independent or dependent controls, including Carrier i-Vu Open (BACnet), Carrier Comfort Network® (CCN), analog, or pneumatic controls
Reliability Features
- Casings meet UL-181 and NFPA-90A requirements
Maintenance Features
- NEMA 2 steel control enclosure for electric or electronic components
- Label information adhered to each unit includes model, size, airflow (cfm), balancing chart, and tagging data
Installation Features
- Factory-installed controls
- All round collars accommodate standard spiral and flex duct sizes
- Balancing taps provided for easy airflow verification
Standard Warranty
- One-year parts
California residents please see Proposition 65
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 20 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 13.000000 | Exterior Dimensions (H) (inches) | 13.000000 | Shipping Weight (lbs) | 20.000000 |
