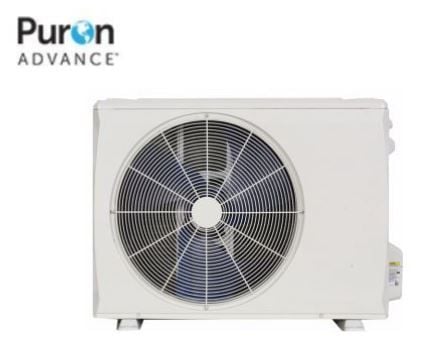

37MARAQ Single Zone DFS Heat Pump Condenser,R454B

Grouped product items
Product Name
Nominal 1 Ton, R454B, Single Zone DFS Heat Pump Condenser, 115/1 MFR: Item: 37MARAQ12AA1
Nominal 3/4 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ09AA3
Nominal 1 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ12AA3
Nominal 1.5 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ18AA3
Nominal 2 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ24AA3
Nominal 3 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ36AA3
Nominal 2.5 Ton, R454B, Single Zone DFS Heat Pump Condenser, 208/1 MFR: Item: 37MARAQ30AA3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Overview

This compact ductless model is simple to install as only wires and piping are needed to run between the indoor and outdoor units. The 37MARAQ model also features premium energy efficiencies of 26 SEER2 and 13.9 HSPF2, making it a great choice for retrofit applications. The 37MARAQ is compatible with eight different types of indoor units.

FEATURES & BENEFITS

100% Heating Capacity at 5° F (-15° C)*
Inverter Compressor
Up to 26 SEER2 cooling efficiency
Up to 13.9 HSPF2 heating efficiency
Select sizes are ENERGY STAR® certified based on indoor unit pairing
Available in 115V and 208/230V
Sizes ranging from 09 to 36
Built-in basepan heater
Piping length 82-213 ft. depending on unit capacity and system configuration
Condenser high-temperature protection
Quiet outdoor sound operation, as low as 54 decibels1
46° F heating mode (heating setback)
Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
Compatible with air handlers, 1-way cassettes, 4-way cassettes, floor consoles, ceiling and floor consoles, low and high static slim ducted units, and high wall units

1Quietest size within each model group during most common cooling operating condition.
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
*Sizes 6-24 (208/230V). Dependent upon indoor unit combination.

SPECIFICATIONS

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 26 SEER2/up to 16.3 EER2/up to 13.9 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing

COMFORT MANAGEMENT

Cooling Operating Range -23° F up to 122° F (-25° C up to 50° C)
Heating Operating Range -22° F up to 75° F (-30° C up to 25° C)

SOUND

Quiet Levels as low as 52.5 dB(A)1

TECHNOLOGY

Compressor Inverter
System Capacity 0.75 - 3 tons
Voltage 115V (Sizes 12), 208/230V (Sizes 6-36)

AESTHETICS

Construction Durable, heavy gauge galvanized steel
Paint Baked-on, powder paint
Line Length Up to 213 ft.

MODELS

Full Model Numbers 37MARAQ**AA1, 37MARAQ**AA3

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1Quietest size within each model group during low fan-speed operation
