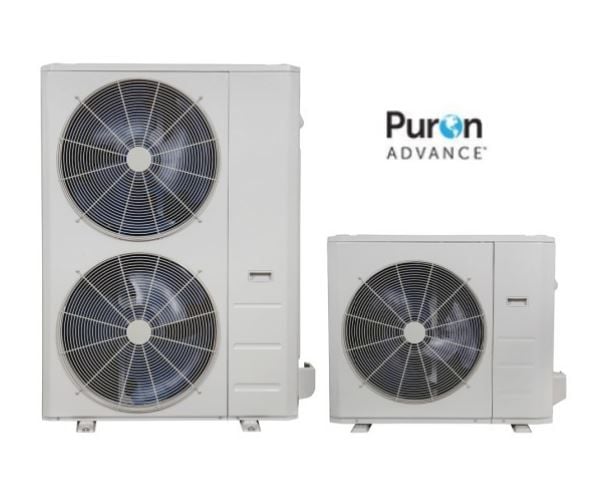

37MGHAQ Multi-Zone DFS Heat Pump Condenser, R454B, 208/1

  • California Prop 65
Overview
Live in a home without ductwork?  The 37MGHAQ can provide comfort all year long, keeping you comfortable on those warm summer days and cold winter nights, even when temperature dips down to 5° F at 116% heating capacity (with the right size and system combination).

You can pair this efficient outdoor unit powered by an inverter compressor with up to five multiple style indoor units in different areas of your home for customized comfort.

FEATURES & BENEFITS
  • 116% Heating Capacity at 5° F (-15° C) (Sizes 30, & 48)
  • Inverter Compressor
  • Up to 25 SEER2 cooling efficiency
  • Up to 11.3 HSPF2 heating efficiency
  • Select sizes are ENERGY STAR® certified based on indoor combinations
  • Available in 208/230V
  • Built-in basepan heater
  • Total piping lengths range from 197 ft. to 328 ft. depending on unit size
  • Connects three to five multiple style indoor units to a single outdoor unit
  • Condenser high-temperature protection
  • Refrigerant leakage detection
  • Quiet outdoor sound operation, as low as 61 decibels1
  • With Puron Advance™ refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Compatible units: High Wall, 1-Way Cassette, 4-Way Cassette, Slim Duct, Floor Console, Air Handler
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

SPECIFICATIONS

EFFICIENCY MANAGEMENT
Energy Efficiency Up to 25 SEER2/up to 15 EER2/up to 11.3 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit combinations

COMFORT MANAGEMENT
Cooling Outdoor range operates from -22° F up to 122° F (-30° C up to 50° C)
Heating Outdoor range operates from -22° F up to 75° F (-30° C up to 24° C)

SOUND

Quiet Levels As low as 61 dB(A)1

CONVENIENCES

Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Inverter, isolated for sound reduction

Protections Voltage, current, high pressure, and loss of charge

System Capacity 1.5 - 5 Tons



Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1 Quietest size within each model group during most common cooling operating condition.
