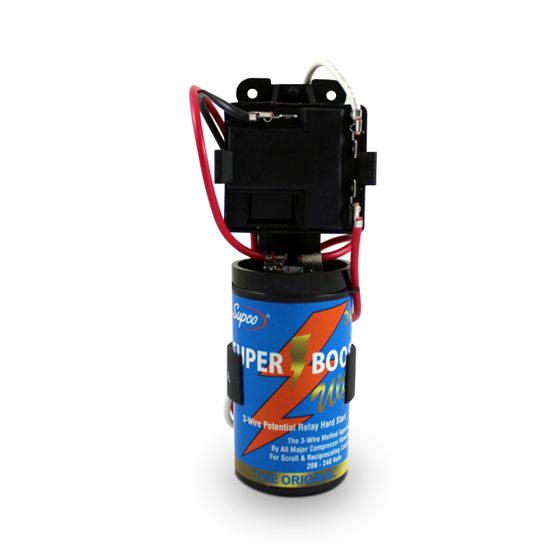

Supco® 3Wire Hard Start Kit 1 to 3 HP
Item
3W1
PRODUCT DETAILS
The 3-Series hard starts provide the service professional with an OEM option when the application calls for a hard start. Combining a potential relay and start capacitor the 3 series provides a TRUE 3 wire solution.
FEATURES & BENEFITS
• Range (HP): 1 to 3 HP.• Capacitor (MFD): 88 to 108 MFD.
• Operating Voltage: 208 to 277 VAC.
• Capacitor Voltage: 330 VAC.
• Mechanical Potential Relay.
• True 3-wire solution.
• NATE® Recognized (Course #1867-0002).
• Voltage sensing.
• Instant re-start.
• Includes EZ snap bracket for quick installation.
• UL® Recognized.
| Electrical | |
|---|---|
| Voltage | 330 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Cap Type | Hard Start Kits | Microfarad Rating | 88-108µF |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
