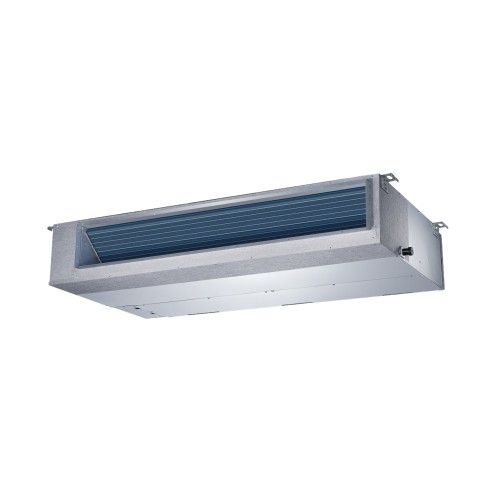

40MBDQ Ducted Indoor Unit, High Static, 208/1

Grouped product items
Product Name
3/4 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ09XH3
1 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ12XH3
1.5 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ18XH3
2 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ24XH3
3 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ36XH3
4 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ48XH3
5 Ton Ducted Fan Coil, High Static, 208/1 MFR: Item: 40MBDAQ58XH3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

OVERVIEW

This performance™ high static ducted indoor unit is a great option for those who wants to make energy savings and comfort a priority, but with a more limited budget today.

Carrier knows how to provide comfort for all budgets with the performance™ high static series 40MBDAQ Ducted indoor unit. No matter if you want it to fit in-ceiling, under-the floor or vertically in the wall, all those options are available with that unit. This high static ducted indoor unit works with either a single or multi-zone ductless system and offers the convenience of a temperature-sensing handheld remote as well as customized comfort with three available fan speeds.

FEATURES

FEATURES & BENEFITS

Sizes: 09 / 12 / 18 / 24 / 36 / 48 / 58
Available in 208/230V
Modes: Cool, Heat, Dry, Fan, Auto
Vertical (sizes 09-48) or horizontal (All Sizes) installation
Achieve 0.8 in WG in multiple sizes
Rear or bottom return
Outside air intake
External Condensate Lift Pump Shipped with the unit (Sizes 09-18)
Built-in condensate lift pump (Sizes 12 - 58)
Follow Me (senses temperature at handheld remote)
Heating Setback (46° F Heating Mode)
Quiet indoor operation, as low as 28.9 decibels¹
Anti-corrosive fin coating
Can be installed with or without duct work.
10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration²

¹ Quietest size within each model group during low fan-speed operation

² If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

SPECIFICATIONS

PERFORMANCE

Quiet indoor operation, as low as 28.9 decibels¹

CAPACITIES

0.75 – 4.8 Ton

REQUIREMENTS

208/230V

AESTHETICS

Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.

¹ Quietest size within each model group during low fan-speed operation
