Vertical Fan Coils
200 to 1,200 Cfm

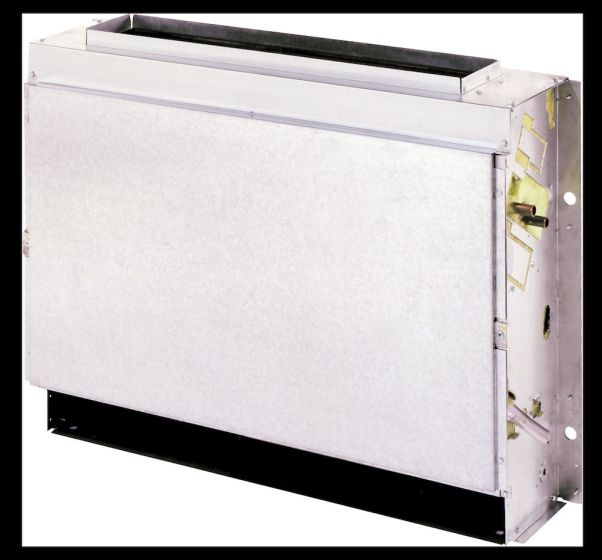

42VA – Furred-in
42VB – Cabinet
42VC – Furred-in, Low Boy
42VE – Cabinet, Low Boy
42VF – Cabinet, Slant Top
42VG – Furred-in, Wall
Ideal for installation in hotels, apartments, and other multi-room buildings, 42 series fan coils combine heating and cooling performance with easy, low-cost installation. The 42V units are designed to occupy a minimum space, using furred-in, painted cabinet, or lowboy models. Custom colors allow the unit to blend with any interior design.
Performance Features
- Airflow capacities from 200 to 1200 Cfm
- Outside air opening with or without adjustable damper (0 to 25%)
- 2-pipe or 4-pipe system combinations
- Economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load
- Optional electronically commutated motors deliver peak operating efficiency
- Sound-absorbing insulation is used to line the cabinet
- Certified performance in accordance with AHRI Standard 440
Reliability Features
- Coils are factory leak tested at 300 psig air pressure with coil submerged in water
- All equipment wiring complies with NEC requirements
- Base units are ETL certified for USA and Canada standards
- Unit casing meets UL 181 and NFPA 90A standards
Maintenance Features
- Cleanable or throwaway filters available
- Removable panels make access to components and connections easy
- Label information adhered to each unit includes model, size, coil information, electrical information, and tagging data
- Condensate drain pans are available in stainless steel or heavy gage galvanized steel constructions, along with optional condensate overflow switches
Installation Features
- Piping, drain, and wiring connections are readily accessible
- Factory-installed controls
- Single point electrical connection
- Valve packages available
Standard Warranty
- One-year parts
| Unit Size 42V | 01 | 02 | 03 | 04 | 06 | 08 | 10 | 12 | |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Airflow (Cfm) | 150 | 200 | 300 | 400 | 600 | 800 | 1000 | 1200 | |
| Shipping Weight (lb)* | |||||||||
| 42VA | -- | 42 | 47 | 57 | 77 | 79 | 108 | 127 | |
| 42VB | -- | 63 | 68 | 82 | 99 | 101 | 133 | 154 | |
| 42VC | -- | 50 | 60 | 72 | 110 | -- | -- | -- | |
| 42VE | -- | 72 | 100 | 108 | 154 | -- | -- | -- | |
| 42VF | -- | 64 | 69 | 83 | 100 | 102 | 135 | 156 | |
| 42VG | 40 | -- | 74 | -- | -- | -- | -- | -- | |
| Coil Water Weight (Approx. lb per row of coil) | |||||||||
| 42VA, VB, VC†, VF | -- | 0.7 | 0.8 | 1.0 | 1.4 | 4.7 | 2.3 | 2.7 | |
| 42VE | -- | 0.9 | 1.2 | 1.6 | 2.3 | -- | -- | -- | |
| 42VG | 0.4 | -- | 1.0 | -- | -- | -- | -- | -- | |
| Coils (fpi) | |||||||||
| FPI (42VA, VB,VF) | 12 fins/inch | ||||||||
| FPI (42VC, VE, VG) | 10 fins/inch | ||||||||
| Coil Face Area (sq ft) | 0.8 | 0.8 | 1.1 | 1.4 | 1.9 | 2.3 | 3.2 | 3.7 | |
| Motor (qty) | |||||||||
| 42VA, VB, VF | -- | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| 42VC, VE | -- | 1 | 1 | 1 | 2 | -- | -- | -- | |
| 42VG | 1 | -- | 2 | -- | -- | -- | -- | -- | |
| Filters Nominal Size (in) (1-in. thick) | |||||||||
| 42VA, VB, VF | -- | 7-3/4 x 21-3/4 | 7-3/4 x 21-3/4 | 7-3/4 x 31-3/4 | 7-3/4 x 41-3/4 | 7-3/4 x 43-3/4 | 7-3/4 x 57-3/4 | 7-3/4 x 65-3/4 | |
| 42VC, VE | -- | 7 x 21-3/4 | 7 x 26-3/4 | 7 x 34-3/4 | 7 x 48-3/4 | -- | -- | -- | |
| 42VG | 10 x 14-1/2 | -- | 10 x 28 | -- | -- | -- | -- | -- | |
| Qty | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Supply Duct Collar | 1-in | ||||||||
| Piping Connections (Sweat) (in.) | |||||||||
| Coil Outlet and Inlet | 5/8 OD | ||||||||
| Drain Connection | 3/4 MPT | ||||||||
*Calculate Operating Weight of Unit: Shipping Weight + Coil Water Weight x Number of Coil Rows
†Available in sizes 02-06.
Factory-Installed Options
- 3-speed switches
- Line voltage thermostats
- 24 v Carrier Debonair® programmable or non-programmable thermostats
- Product Integrated direct digital electronic controls (i-Vu® control system using BACnet protocol)
- Chilled water or direct expansion cooling coils
- Hot water or steam heating coils
- Total or auxiliary electric heat
- Service switches
- Custom colors
- Permanent or throwaway filters
- Automatic air vent and drain on water coils
- Double deflection discharge grilles
- Tell-tale drains and stainless steel drain pans
- Condensate overflow switch
- Dual density fiberglass, foil faced fiberglass or closed cell insulation
- PSC, High Static PSC, or ECM motors
- Tamperproof locks on access panels and doors
- Leveling legs
- Outside air damper (42VA,VB,VF units only)
- Outside air wall box (42VA,VB,VF units only)
- 16 gage, galvanized steel front panel (42VB,VF units only)
Field-Installed Accessories
- Remote mounted thermostats
- Valve packages factory wired and assembled for field mounting
- Drip lips for collection of condensate under valve packages
- Wall panels for recessed units
