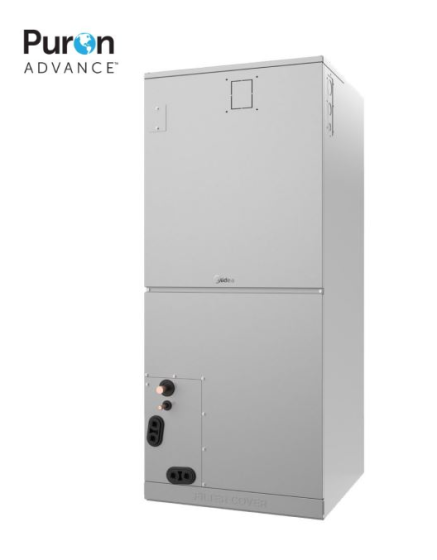

45MBAAQ Multi-Poised Heat Pump Air Handler, R454B - Ductless System
Overview
Easily connect with traditional ducted systems or replace outdated gas furnaces while still enjoying the benefits that ductless systems provide. Additionally, you can install the unit in four different positions for maximum flexibility within any space. The 45MBAAQ multi-poise air handler has a variable-speed ECM motor that synchronizes with the Carrier single-zone or multi-zone ductless heat pump models in the 37MAHAQ and 37MGRAQ.
FEATURES & BENEFITS
FEATURES & BENEFITS
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Sizes 18k, 24k, 30K, 36k, 48k and 60k
- Total system static pressure up to 0.8 in. W.C.
- Less than 2% air leakage
- Extremely quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 208/230V
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional Electric Heat Packages available (5 to 25 KW)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited warranty upon registration1
1 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
SPECIFICATIONS
EFFICIENCY MANAGEMENT
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on outdoor unit pairing
SOUND
- Quiet Levels As low as 25.5 dB(A)1
COMPATIBLE UNITS
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1 Quietest size within each model group during low fan-speed operation
