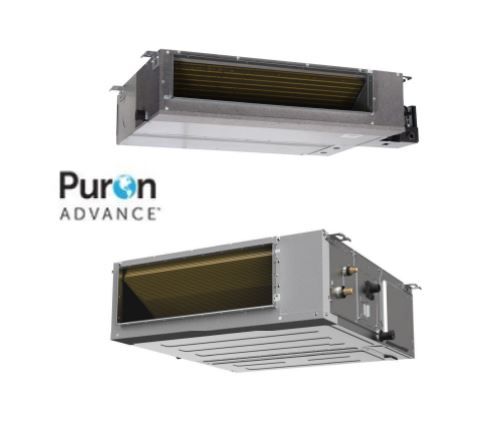

45MBDAQ Slim Ducted Indoor Unit, R454B, Low and High Static, 208/1
Overview
This Performance™ Series ducted indoor unit is an affordable option for those who still want to enjoy energy savings and comfort. This versatile unit is available in both high static and low static options and can be installed in the ceiling, under the floor, or vertically in the wall. This high static ducted indoor unit works with either a single or multi-zone ductless system and offers the convenience of a temperature-sensing handheld remote as well as customized comfort with three available fan speeds.
FEATURES & BENEFITS
FEATURES & BENEFITS
- Sizes: 06 / 09 / 12 / 18 (Low Static); 09 / 12 / 18 / 24 / 36 / 48 / 58 (High Static)
- Available in 208/230V
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical (sizes 06-48) or horizontal (All Sizes) installation
- Up to 0.8 in WG
- Rear or bottom return
- Outside air intake
- External Condensate Lift Pump Shipped with the unit (Sizes 09-18)
- Built-in condensate lift pump (High static units)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Quiet indoor operation, as low as 22 decibels1
- Anti-corrosive fin coating
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
1 Quietest size within each model group during low fan-speed operation
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
SPECIFICATIONS
PERFORMANCE
- Quiet indoor operation, as low as 22 decibels1
CAPACITIES
- 0.5 – 4.8 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Unit cabinet is constructed of galvanized steel. The cabinet is fully insulated for improved thermal and acoustic performance.
1 Quietest size within each model group during low fan-speed operation
