485OP Optically Isolated RS-422/485 Repeater

Item
485OP
  • California Prop 65

FEATURES

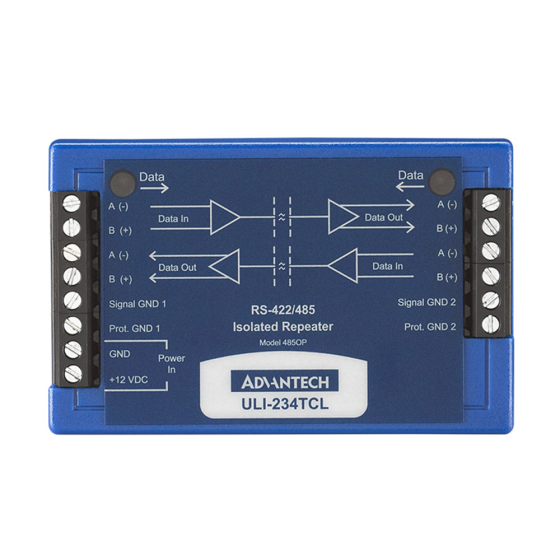

Model 485OP is an RS-422/485 signal repeater with 2 kV optical isolation on data lines and terminal blocks for RS-422, RS-485 2 or 4-wire modes. It extends RS-422/485 an additional 1.2 km to double the communication range. Another benefit is the ability to add another 32 nodes to an RS-485 network and join 2 and 4 wire systems. Its compact design fits almost anywhere. Wiring schematic on the label eliminates guesswork. 12 Vdc PSU is required and included with USA, EU, UK, AU, UP and CN blades.


SPECIFICATIONS

Serial Technology
• Connector Terminal block
• Signals TDA(-), TDB(+), RDA(-), RDB(+), GND
• Modes RS-485 2-wire or 4-wire, RS-422 4-wire
• LED Indicators Data flow and Power

Isolation
• Method Optical
• Rating 2000 V
• Lines Protected Data lines

Surge Suppression
• Method TVS
• Rating 6.5 V, bi-directional, 600W peak power dissipation
• Lines Protected Data lines

Industrial Bus
• Protocol Modbus ASCII / RTU

Terminal Block
• Wire Size 22 to 14 AWG
• Torque 0.5 Nm

Power
• Connector Terminal block
• Voltage 10 ~ 14 Vdc
• Consumption 1.0 W
• Source External 12 Vdc source, required.
Note: one wall transformer power supply included.

Mechanical
• Enclosure Material Plastic
• IP Rating 30
• Dimensions 97 x 61 x 25 mm
• Mounting In-line installation

Environmental
• Operating Temperature 0 to +40 °C
• Operating Humidity 0 to 95%, non-condensing

Meantime Between Failures (MTBF)
• MTBF, hours 453103
• Calculation Method MIL217F Parts Count Reliability Prediction

Regulatory Certifications

• Approvals FCC
2014/30/EU – Electromagnetic Compatibility Directive
2011/65/EU – Amended by (EU) 2015/863 Reduction of Hazardous Substances Directive (RoHS)
2012/19/EU – Waste Electrical and Electronic Equipment

• CE Standards
EN 55032 (Class B) – Electromagnetic Compatibility of Multimedia Equipment – Emission Requirements
EN 55024 – Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement
EN 60950-1 +A1 +A11 +A12 +A2 – Information Technology Equipment – Safety – Part 1 General Requirements
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 2
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 4.000000
Exterior Dimensions (H) (inches) 3.000000
Shipping Weight (lbs) 5.000000
Warranty
Country of Origin United States
