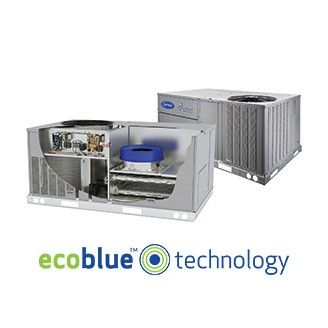

Carrier 6 Ton, 11.0 EER Package RTU Low Gas Heating/Electric Cooling, Two Stage Cooling, Direct Drive/EcoBlue ,460/3
| Electrical |
| Hertz |
60 |
MCA |
14 |
MOCP |
20 |
Phase |
3 |
Voltage |
460 |
| Specification |
| High Pressure Switch |
Yes |
IEER |
15 |
Ignition Type |
DirectSpark |
Low Pressure Switch |
Yes |
Metering Device |
TXV |
Net Cooling Capacity |
70000 |
Refrigerant |
R-410A |
Tonnage |
6 |
Condenser Motor HP |
1/4 |
Blower Motor Type |
Direct Drive |
BTU Output |
54000 |
Compressor Type |
Scroll |
Condensate Connection Size |
3/4 |
Condenser Motor Type |
Direct |
Cooling Stages |
2 |
Filter Size |
(4) 16x16x2 |
Gas Connection Size |
1/2 |
| Safety Standards |
| California Prop 65 |
Yes |
Hazardous Material |
No |
| Weights and Dimensions |
| Operating Weight (lbs) |
607 |
Exterior Dimensions (D) (inches) |
74.375000 |
Exterior Dimensions (W) (inches) |
46.625000 |
Exterior Dimensions (H) (inches) |
41.375000 |
Shipping Weight (lbs) |
625.000000 |
| Warranty |
| Compressor Warranty |
5 Year |
Parts Warranty |
1 Year |
