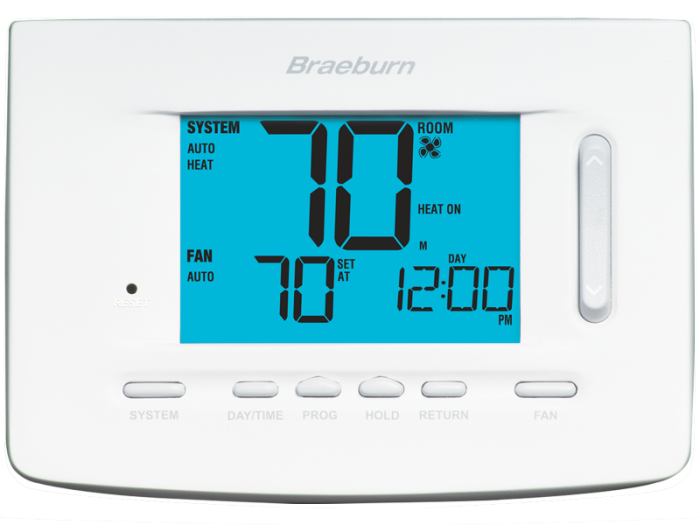

Braeburn® Premiere 7/5+2 Day Programmable Thermostat 1H/1C (2H/1C HP), 24Vac/3Vdc (2AA)

FEATURES

• Day, 5-2 Day or Non-Programmable
• Large 5 Sq. In. Display with Bright Blue Backlight
• Auto or Manual Changeover
• SpeedBar Multi-Function Button
• Adjustable Temperature Limits
• Indoor or Outdoor Remote Sensing
• SpeedSet Programming Mode
• Meets Energy Aware ® Guidelines*
• Hardwire or Battery Powered
• Multi-Level Keypad Lockout
• Auxiliary Heat Fossil Fuel Option
• Separate User and Installer Reset Buttons
• Programmable and Circulating Fan Modes
• Adaptive Recovery Mode (ARM )
• Temporary Override Limits
• Residential or Commercial Modes
• Compatible with 2 or 3 Wire Hydronic Zone Systems

SPECIFICATIONS

• Dimensions: 3.8” x 5.5” x 1.42”
• Electric Rating: 24 Volt AC (18-30 Volt AC) 1 amp maximum load per terminal 3 amp total maximum load (all terminals)
• AC Power: 18-30 Volt AC
• DC Power: 3.0 Volts DC
• (2 “AA” Alkaline batteries included)
• Compatibility: Single stage gas, oil or electric systems Single stage heat pumps with or without auxiliary heat 250mv – 750mv millivolt heating systems
• Control Range: 45° to 90° F (7° to 32° C)
• Display Range: 40° to 99° F (5° to 37° C)
• Accuracy: +/- 1° F (+/- .5° C)
• Temperature Differential: .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
• Storage Temperature: 14° to 140° F (-10° to 60° C)
• Operating Humidity: 5% to 95% Relative Humidity
• Terminations: Rc, Rh, O/B/V3, Y1, W1/E, G, C, S1, S2
